User Guide


What is Solvent?

Solvent is an integrated platform that combines an application container (jetty), a middle-ware and a developer environment to provide a complete solution for deliverying web applications.

  • The Solvent platform reduces the complexity and time required to build high quality web applications.

  • Solvent is designed for both moderately skilled and experienced developers.

  • Built on the JVM, thus developers have access to the vast JVM platform and technology base including all the available libraries.

  • Solvent is polygot, allowing developers skilled in different programming languages to benefit from a single platform.

  • Solvent is a native web platform, meaning the entire platform is built on web technology including the front-end which is browser based.

For architectual insight into the Solvent platform and its design you may read the Solvent technical document .

Navigating Application Resources

Navigating application resources in the Solvent environment involves navigating file system resources and database resources.

Assets

This tab is used for navigating file system resources. Specifically the Solvent developer environment application has an asset directory where all items that can be worked on in the Solvent developer environment are stored. This includes all applications.

The actual location of the asset directory is solvent/solvent-apps/solvent.

Various Menu Action

Depending on the type of resource you right-click on, any number of the following actions maybe be avaialble in the resulting context menu.

  • New - creates a new resource
    • Folder - create new folder
    • Web App - creates a new Java web application
    • Web Resource - creates one of the following file types.
      • Javascript
      • Markdown
      • Html
      • CSS
      • XML
      • Java
    • Executable - create one of the following types
      • Smart Object
      • SQL Statement
      • Script
      • Http Connection
      • File Uploader
      • Email Sender
    • Application Object - create one of the following
      • NVP Processing Type
      • Executable Type
      • Data Source - datasource for connecting to database
      • Transaction - create a jdbc transaction
      • CodeMirror Mode - create a new CodeMirror editor mode
      • Logger Config
      • Web App - web app configuration object
      • User Identity - user identity object

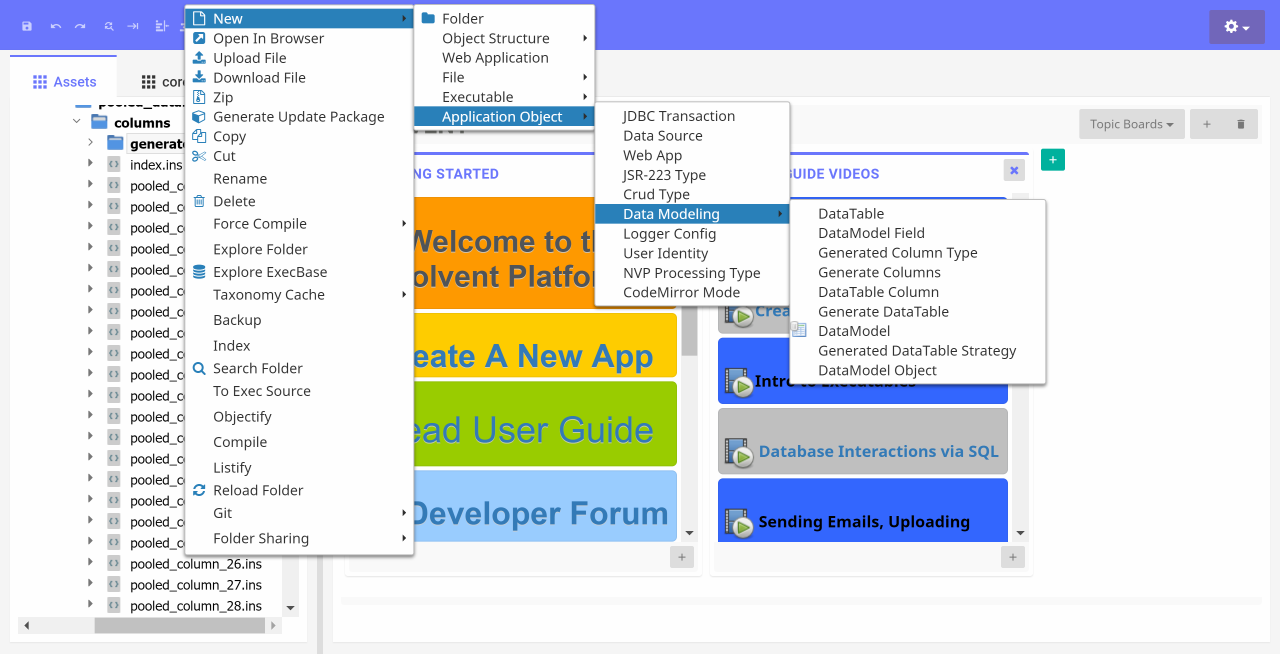

      • Data Modeling
        • Generated Column Type

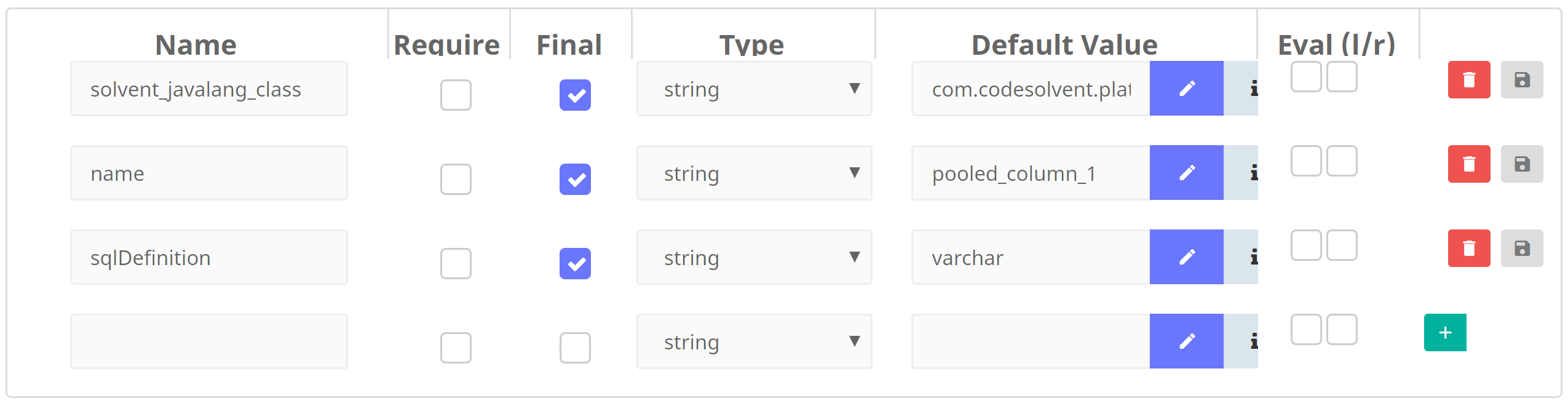

        • DataTable Column
        • Generate DataTable
        • DataModel
        • Generated DataTable Strategy

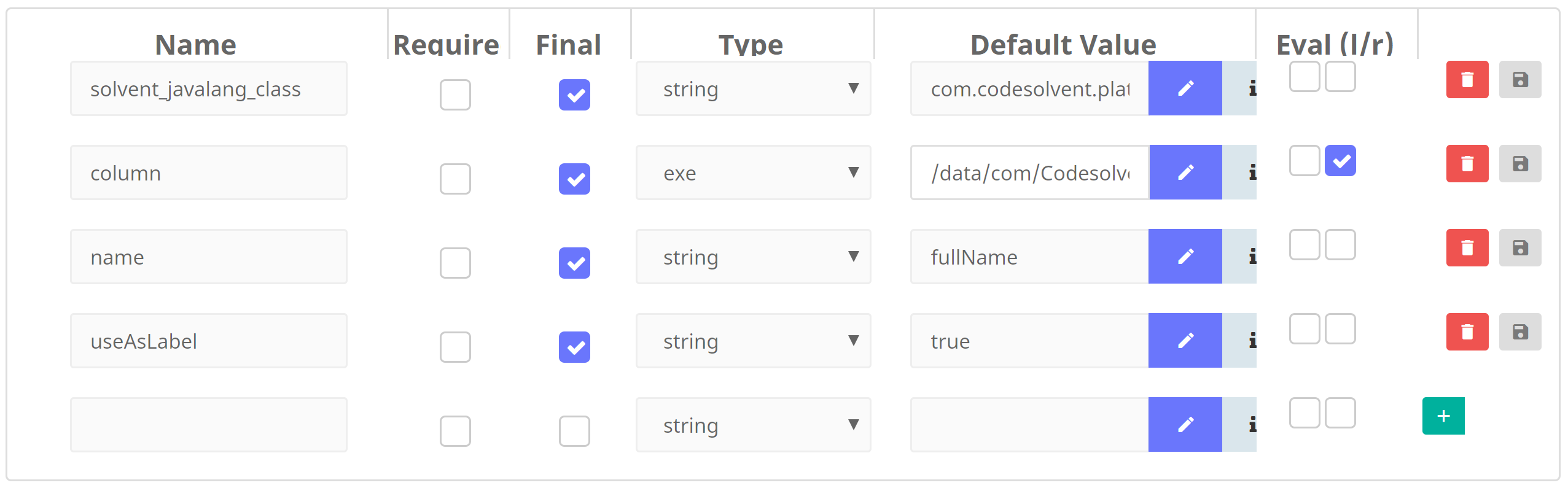

        • DataModel Field
        • Generate Columns

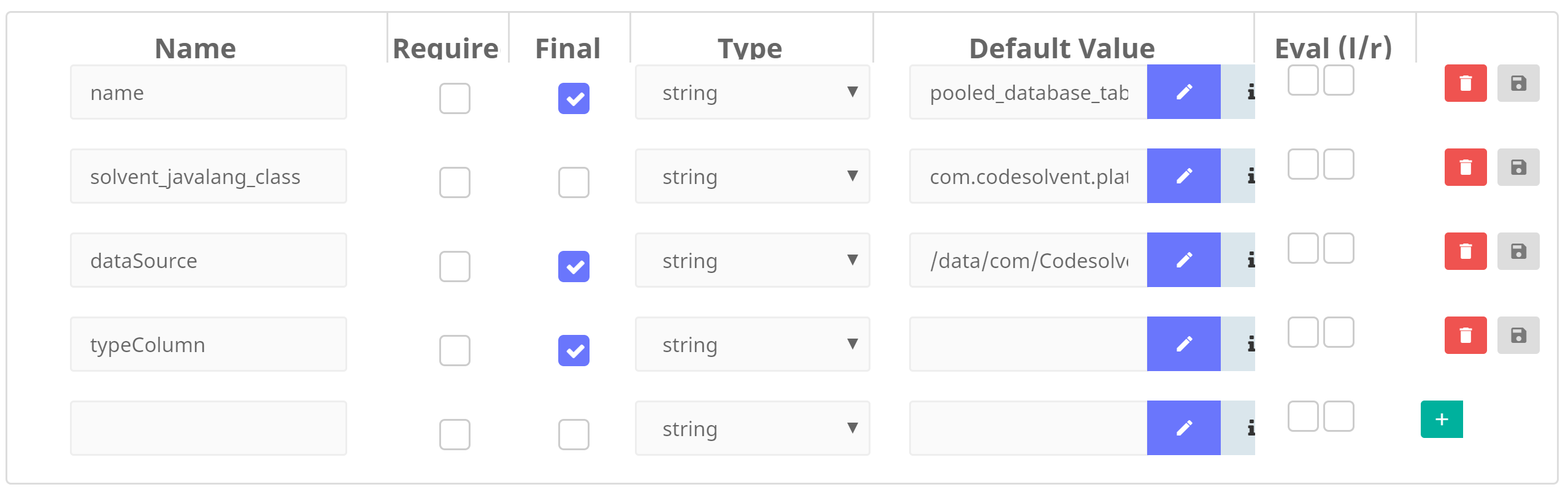

        • DataTable
  • Add - upload a file to the asset directory
  • Copy - copy an item in the asset directory
  • Paset - paste an item in the asset directory
  • Rename - Rename an item in the asset directory
  • Delete - Delete an item in the asset directory
  • Refresh - Refresh an item in the asset directory, when it is a a folder the following options are available
    • Smart Object - refresh only Smart Objects
    • DataStatement - refresh only DataStatements
    • ScriptExecutor - refresh only ScriptExecutors
    • HttpConnector - refresh only HttpConnectors
    • FileUploader - refresh only FileUploader
    • EmailSender - refresh only EmailSenders
    • All - refresh all executables regardless of type
  • Delete Web App
  • Clone Tree - opens a new tab with a clone of the asset directory try for easy drag-n-drop
  • Backup - add item to backup
  • To Source - transform executable json file to source form for editing, ie create an entry for it in the ExecBase
  • View - view html/executable in wysiwyg editor
  • Test - runs a test
  • Build - builds a build.xml file
The Executable Database (ExecBase)

This tab is for navigating the executable database. All executable definitions are stored in a database and all alterations to executable definitions are against this database. This database has a taxonomy layered on top of it which allows for interacting with, and manipulation of the executables database in a manner similar to a filesystem. In other words the items on this tab are not on the file system but in a database.

This is an embeded derby database solvent/derby/crudzilla

Various Menu Action

Depending on the type of resource you right-click on, any number of the following actions maybe be avaialble in the resulting context menu.

  • New - create one of the following
    • Category - create a taxonomy category node
    • Smart Object
    • DataStatement
    • ScriptExecutor
    • HttpConnector
    • FileUploader
    • EmailSender
    • Application Object - create one of the following
      • NVP Processing Type
      • Executable Type
      • Data Source - datasource for connecting to a JDBC database
      • Transaction - create a jdbc transaction
      • CodeMirror Mode - create a new CodeMirror editor mode
      • Logger Config
      • Web App - web app configuration object
      • User Identity - user identity object
      • Data Modeling
        • Generated Column Type
        • DataTable Column
        • Generate DataTable
        • DataModel
        • Generated DataTable Strategy
        • DataModel Field
        • Generate Columns
        • DataTable
  • Add Executable - show search tab for search and drag-n-drop of executables.
  • Clone Tree - clone ExecBase tree for easy drag-n-drop operations.
  • Rename - rename category or executable
  • Delete - delete category or executable
  • Compile - compile an executable or category of executables, ie make an executable definition a json executable on disk.
  • Clone - clone this executable
  • Compile - compiling turns an executable definition in the ExecBase to an executable json file on disk.
  • Delete - delete executable from taxonomy and from ExecBase
  • Test - test executable
  • Unlink - remove executable from taxonomy but don't delete from ExecBase.

Note that all actions in the ExecBase should happen in the context of an application. Meaning categories and executables you create and manipulate must ultimately be along a valid application path that mirrors the application path in the asset directory.

Creating executables and categories that don't map to an existing application is likely to create problems because the Solvent platform assumes all executables belong to an application.

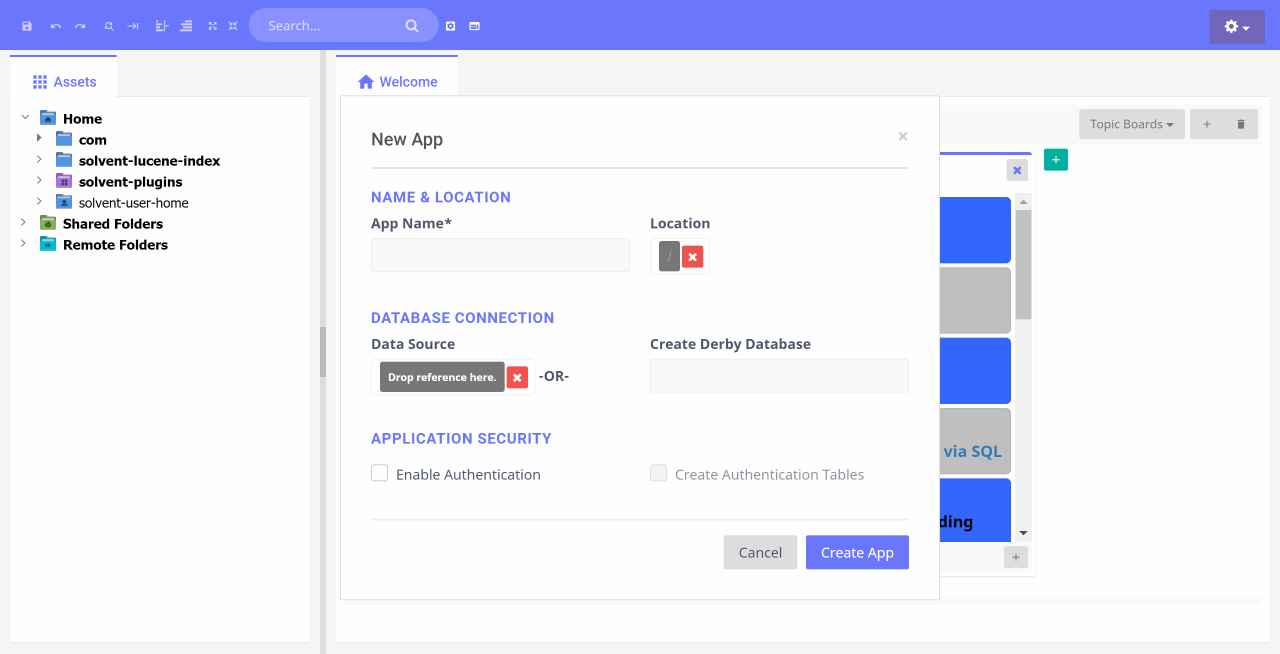

Creating a new web App.

To create a new application, right-click on target folder and do New==>Web App.

  • Create Authentication Tables

    If you want authentication tables to be generated for this app then check the box. Checking this box will enable authentication for your new app. The folder secure in your new app folder is the default secure directory of your application. You can edit your web.xml file to chose different security settings.

    The default login is developer/developer

  • Database Connection

    You have two database choices when setting up authentication

    • You may specify a datasource for an already existing database.

      If you want to use a database such as mysql, oracle..etc, you'll need to first define a DataSource object.

      To create a DataSource object for your application, right-click on target folder and do New==>Application Object==>Data Source.

      If you have created a DataSource object for your new application, then drag-n-drop it on the form above. Note that this Database must already exist.

    • You may choose to have Solvent create a Database for you, this is however not recommended. If you choose to create a database, then an embeded derby database is created, this database would not require authentication. See derby documentation for details. Note the embeded derby database is for the Solvent product and really shouldn't be used for other applications.
  • If you only specify a name and no DataSource, the App would be generated without authentication enabled. You'll then need to manually enable authentication via edit of web.xml and solvent/etc/<APP-NAME>.jdbc.properties

If you are new to Solvent, your first application is a good place to start exploring the capabilities of the platform. New applications have boilerplate executables that cover all the key concepts of the platform.

Note: Creating a new app currently can be a bit slugish so don't be alarmed. This is because taxonomy operations that include generating boilerplate artifacts are inherently inefficient. Future improvements will make this process faster. This should however not be a problem given that creating new apps is not a frequent occurence.

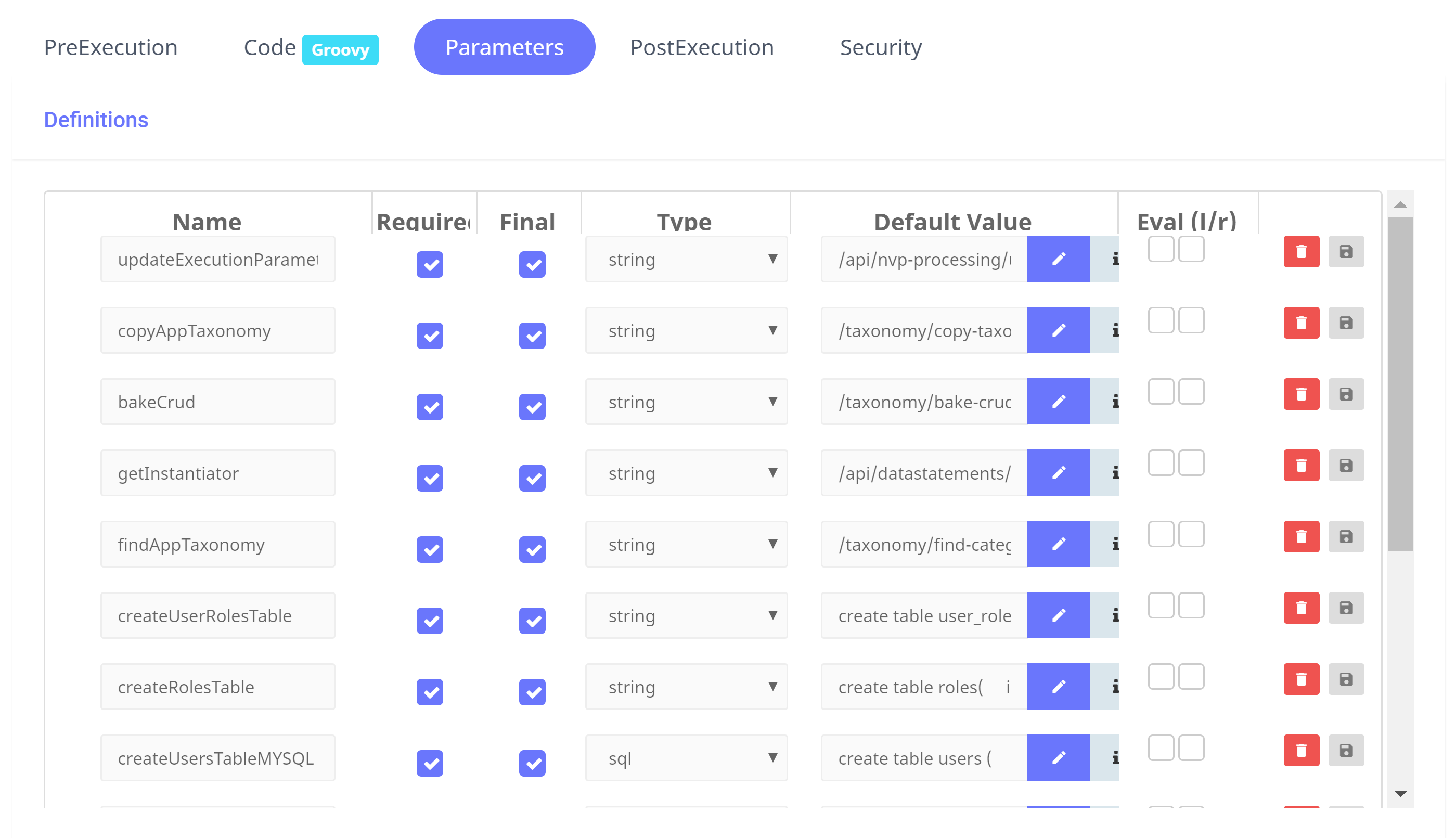

Request Parameters

The Solvent platform provides a simple and powerful mechanism for managing request parameters in an application. Parameter type and validation are handled by the user simply stating what constraints the parameter must adhere to.

For instance to ensure a given parameter is an integer, simply declare the parameter on the Parameters tab and specify any additional validation. The user does't have to write any code or do any additional configuration in an external file.

More importantly, parameters are contextual, in other words the parameter is added to the executable contruct it applies to. Every executable has a Parameters tab for declaring parameters.

Parameters also have a number of powerful capabalities that are described below.

  • Name - The name of the parameter.
  • Required - If checked, this parameter would be required on the argument map during execution. If it is missing, an error would be returned and execution terminated.
  • Final - If checked, this paramater's default value cannot be overwriten by a supplied value. This is good for holding configuration that you don't want users to alter.
  • Type - This represents the parameter type. If default value doesn't conform to the format of this type, an error may be returned.
    • exec - if you choose to evaluate an executable type, the value should be a path that is either relative to the current execution or an absolute path in relation to the application home directory. In other words an absolute path isn't an absolute file system path but rather a path that starts with / relative to the application's home directory, specifically the directory pointed to by the servlet init parameter app-home.
    • json - if you choose to evaluate a json value, you may parameterize fields by prefixing them with :solvent_param<PARAMETER-NAME> where <PARAMETER-NAME> is the name of the parameter whose value should be used to initialize the given json field. <PARAMETER-NAME> doesn't need to be declared, it only needs to be on the argument map.
    • plain-text - if you choose to evaluate a plain text value, string interpolation would be performed. ie Solvent would look for and evaluate occurences of #{<EXPRESSION>} where <EXPRESSION> is any Java style expression, including variable access.
  • Validation - Click on this to reveal the various validation options. The validation options are dependent on the type. Validation error codes are defined in solvent-app-settings/validation-error-definitions. To see the error message structure simply run a test with the test console.
  • Default Value - This is the default value for the parameter. Depending on the type, the edit button may be used to edit the data.
  • Eval (l/r) - This option controls evaluation of the parameter name/value pair. If the first checkbox is checked, the Name field is assumed to be an assignment expression to be evaluated, for instance to assign the value to an array index. If the second checkbox is checked, the Default Value is assumed to be an expression to be evaluated.

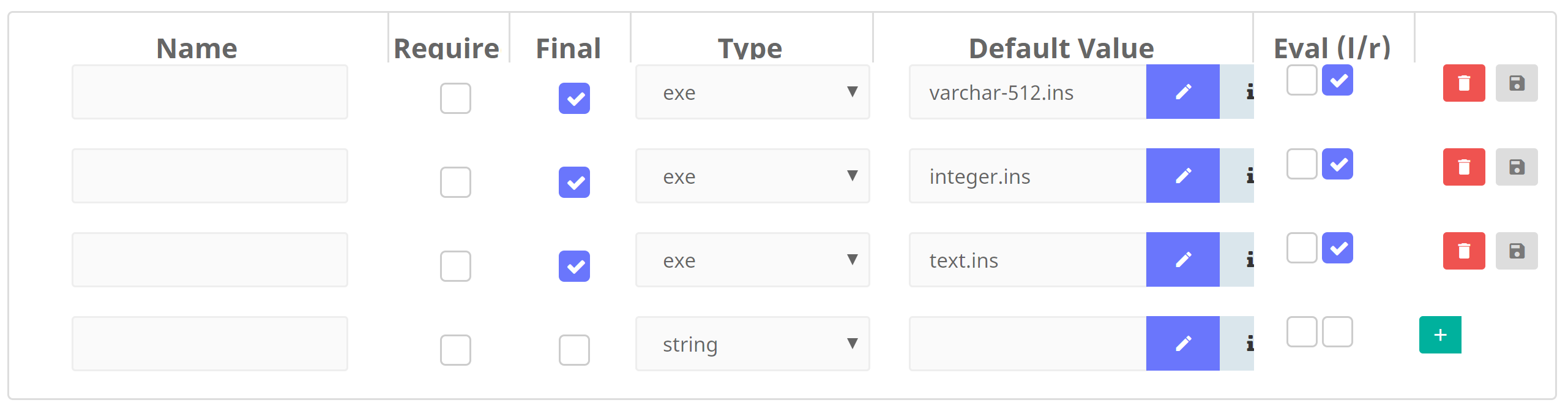

    Expression evaluation includes executable invocations, in other words to invoke an executable and use the result as the value of a parameter, you must specify a type of executable and check the second box.

    Similarly, to allow for json evaluation, a type of "json" must be specified and second box checked.

    In general you can specify any Java style expression to be evaluated.

Generative Parameter Values

These are built-in generative constructs. When you use them as a value for a parameter and evaluate them, their values would be generated.

  • solvent_next_insert_id - when used as a parameter expression or in a DataStatement,generates a uuid, this would be used mostly in DataStatements to generate ids.
  • solvent_last_insert_id - this has the value of the most recently generated uuid and can be accessed from the argument map.
  • solvent_generate_uuid - generates a uuid.
  • solvent_current_timestamp - when used as a parameter expression or in a DataStatement, generates current time stamp in utc.
  • solvent_current_timestamp_seconds - when used as a parameter expression or in a DataStatement, generates current time stamp in utc in seconds.
  • solvent_current_timestamp_minutes - when used as a parameter expression or in a DataStatement, generates current time stamp in utc in minutes.
  • solvent_empty_string - generate an empty string, by default if a value isn't specified for a parameter, its value is null.
  • solvent_user - returns the user name of currently logged-in user, can be accessed from argument map.

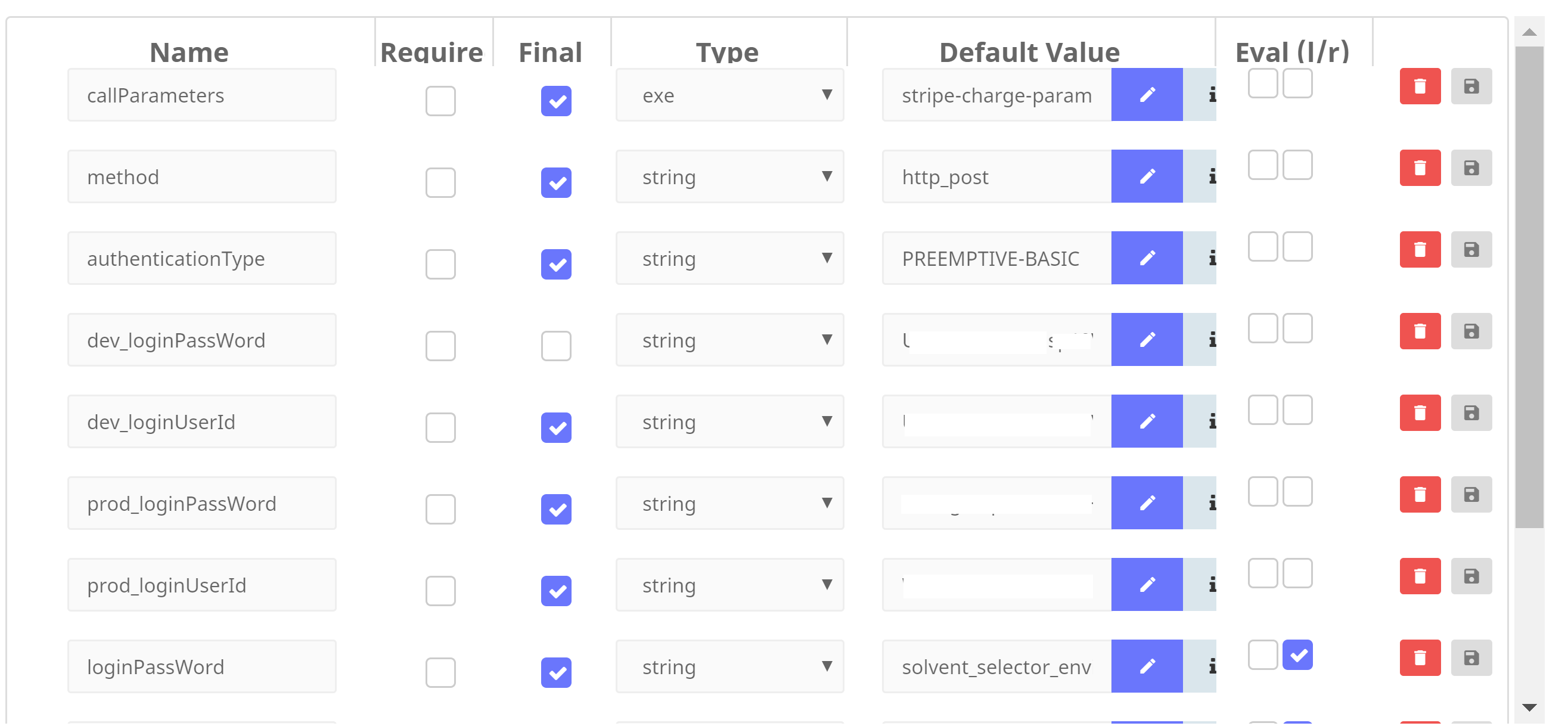

Variable Selection

Variable selection is a mechnism that allows a parameter to get its value from another parameter selected based on a switch value. An example of a variable switch value would be the value qa to indicate that the parameter should get its value for the QA environment.

Variable selection can be setup globally via solvent-app-settings/system-settings with an entry for parameter solvent_variable_selector_switches, or locally.

To setup variable selection.

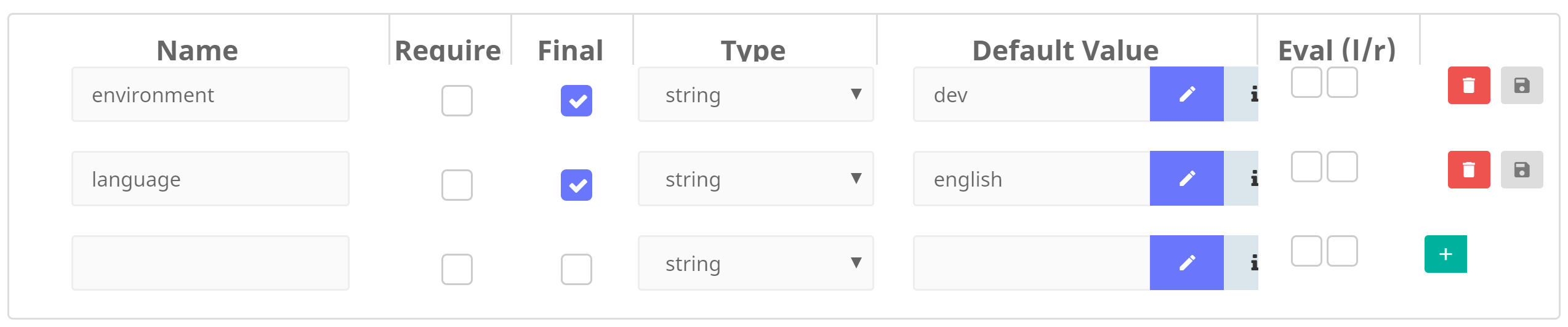

  • By default your solvent-app-settings/system-settings should have a global switch setup. This would be solvent_variable_selector_switches, which points to the global application-wide switches solvent-app-settings/variable-switches and typically would look something like this.

    Each entry represents a switch whose value would determine the value of selector parameters whose value depend on this switch. So for instance a parameter's value may depend on whether the language is English or French..etc

  • Set the value of the parameter whose value you wish to set based on a switch to solvent_selector_<SWITCH-PARAMETER-NAME> where <SWITCH-PARAMETER-NAME> is a parameter that holds the switch value, in other words this parameter is the switch variable. For instance <SWITCH-PARAMETER-NAME> could contain one of the following values:
    • dev
    • qa
    • uat
    • prod

    Note that this parameter is an expression thus you should check the right expression box.

    Solvent would first look on the current argument map for <SWITCH-PARAMETER-NAME>, if it isn't found, then it will look at the application settings for the object solvent_variable_selector_switches. This object should have the application level switches.

  • After obtaining a switch value, Solvent uses a prefix pattern to get the parameter's correct value.

    What this means is that Solvent would look at the argument map for the value of a parameter called <SWITCH-VALUE>_<CURRENT-PARAMETER-NAME>.

    <SWITCH-VALUE> is the value obtained from the parameter with name <SWITCH-PARAMETER-NAME>. <CURRENT-PARAMETER-NAME> is the name of the current parameter being evaluated.

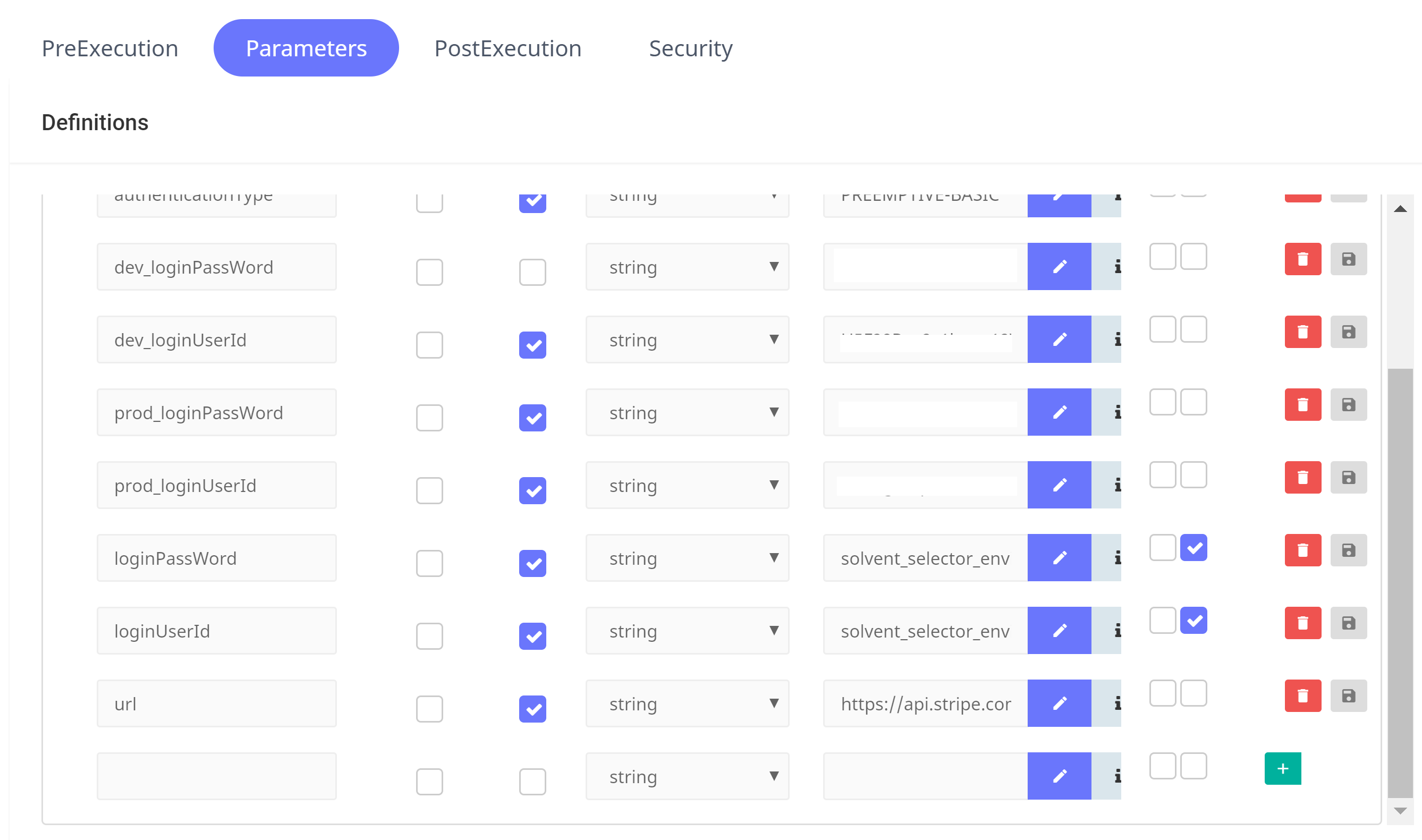

  • Variable selection may be setup locally, meaning without using the solvent-app-settings/system-settings solvent_variable_selector_switches entry.

    Local setup is similar to global setup except the <SWITCH-PARAMETER-NAME> would be on the current argument map.

    Above, the parameter databaseUrl at run time would be set to the value of the parameter qa_databaseUrl, which is the value localhost:3306/db1.

    If the switch variable parameter environment had been set to the value dev then the resulting value would have been localhost/derby which is the value of the selected parameter dev_databaseUrl.

Assigning Parameters to other Parameters

To assign a parameter to another, set the value of the parameter to :<SOURCE-PARAMETER-NAME> and enable expression evaluation.

Note that the <SOURCE-PARAMETER-NAME> must be already on the argument map, meaning it must be listed before the current parameter.

Note: Parameters are processed in the order they are listed (ie sequentially) so parameters that depend on the value of other parameters must be listed below those depended upon parameters.

Note that all parameters that are expressions must be final by default in order for parameter expressions to be evaluated. This is for security reasons, it prevents user supplied values from being evaluated. To override this behaviour see the configuration section.

Writing Code

Solvent is a polyglot platform, meaning it allows the user to write code in a number of programming languages. The Solvent construct that supports code execution is called a ScriptExecutor. You create ScriptExecutors by right-clicking on the folder you want to save them in and do New==>Executable==>Script, then choose the type of language you want to code in.

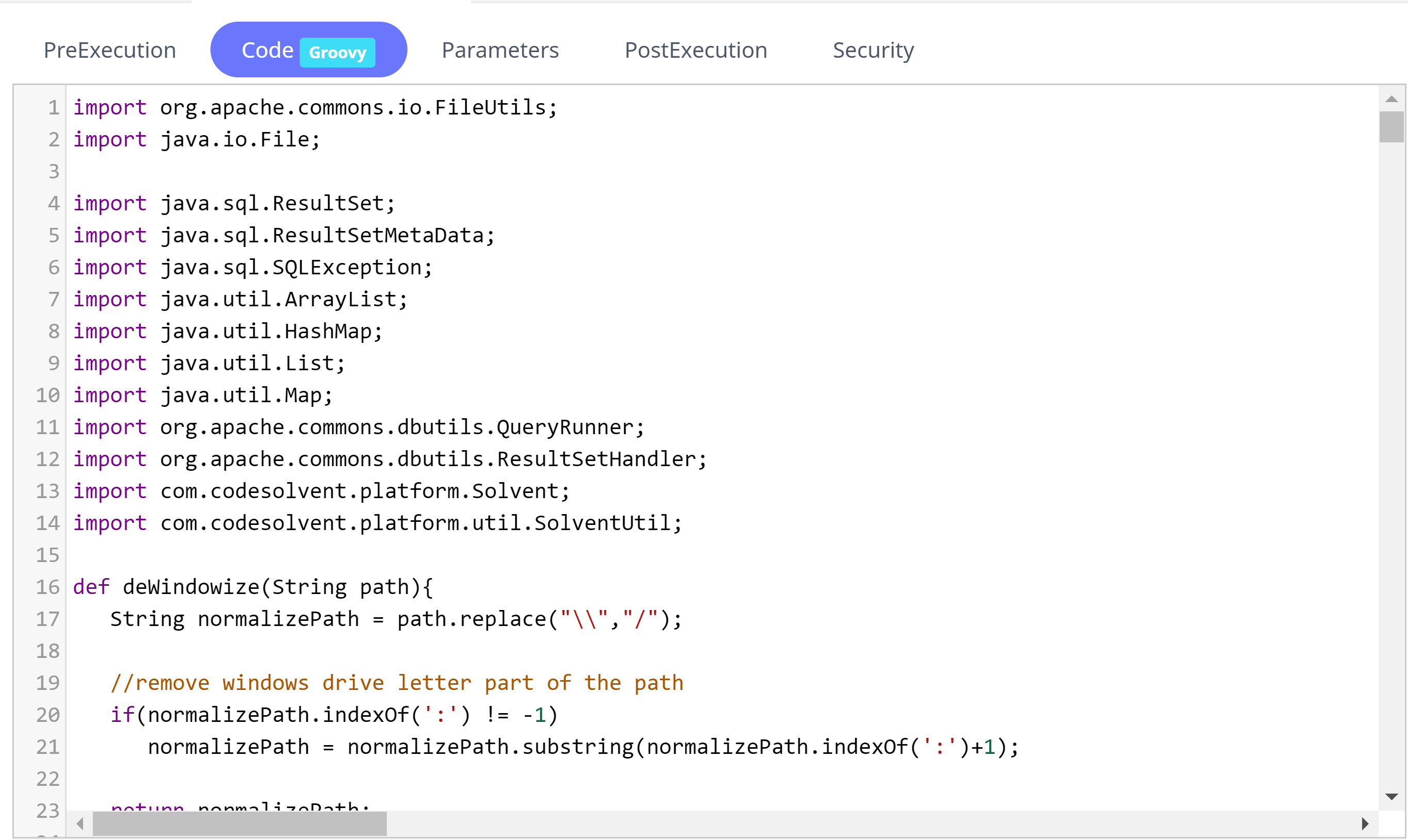

Above shows the code editor, the code editor depends on the language of the ScriptExecutor. When creating a ScriptExecutor, depending on the type you may have the choice to create a file on the disk. For instance velocity templates can be loaded from file sytem or the template may be provided dynamically.

ScriptExecutor have a number of native objects available to scripts.

  • exec - This object is used for invoking other executables. It has the following methods:
    • add
    • using
    • call
    • logger - see section on logging
    • appBaseDir - returns the file system path of application's web folder.

    The usage syntax of the exec object when calling other executables is as follows: exec.[add(<parameter-name>,<parameter-value>).]*[using(<module-name | module-path>).]
    call(<exec-path>[,<arguments-map>][,<run-as-from-serverside>]);

    • exec-path: This is either a relative or absolute path of an executable. Both relative and absolute paths are resolved relative to the application web directory.
    • arguments-map: This is a java.util.HashMap object to be passed as an arguments map for the call. If this argument is supplied, the parameters added via an add call will be ignored.
    • run-as-from-serverside: Set this to false so the call is treated as if it came directly from browser thus enforcing server-side access restriction, the default is true. This is generally useful if your application uses an interceptor.
    • module-path: this is either a relative or absolute file system path of a module. If the path is relative, it will be resolved against the system setting property solvent_module_base, if solvent_module_base is not set then it is resolved against the asset directory.
    • module-name: It will be resolved against the system setting property solvent_module_base. If solvent_module_base is not set then it is resolved against the default module locations solvent-modules in the Solvent installation directory. Note the module name is the app name, which is the same as the folder name.
  • solvent - This is an object that represents the current instance of the Solvent execution engine. In general it should not be used by a developer. However it does have the method sysSetting which contains solvent-app-settings/system-setting. The object returned by this method has get and set methods for accessing the properties.
  • httpRequest - HttpServletRequest object
  • httpResponse - HttpServletResponse object
  • arguments - Argument map as described above
  • solvent_user - currently logged in user, if any
Modules

Modules are a way to make applications dependent on other applications. Modules are just depended upon applications. Of course the application could just be a set of functionality to be used by other applications, in other words not a standalone application.

The using method decribed above is what you use to invoke a call to a module.

The file extension of ScriptExecutor is "ste".

Using SQL Databases

The Solvent platform reduces the work required to interact with a database to simply specifing the necessary SQL. The developer doesn't have to write any additional code to interact with data.

Besides SQL, the developer doesn't need to know any other programming concepts to do database interactions. The executable construct that supports Database interactions is called a DataStatement. To create a DataStatement the developer simply decides where to put it, right click on the folder and do New==>Executable==>SQL Statement.

The DataSource Object

Of course before you can interact with a relational database, you need to be able to connect to it. A DataSource object is a configuration object for specifying a database connection. To create a DataSource object right-click on the target folder and do New==>Application Object==>Data Source.

  • name - Database name.
  • type - The datasource type, can be one of the following values jndi,jdbc-driver,datasource-bean. When datasource-bean is specified then it is assumed that this object contains the properties for the resulting datasource object and also the property className must be present and must be the qualified Java class name for the DataSource implemenation.
  • url - The url for the database connection. This is required when type is jdbc-driver
  • user - login user name for authenticating to database. This is required when type is jdbc-driver.
  • password - login password for authenticating to database. This is required when type is jdbc-driver.
  • driverClassName - Fully qualified Java class name for the jdbc driver to use. This is required when type is jdbc-driver.
  • jndiPath - For JNDI datasources. This is required when type is jndi.
  • userName - login user name for authenticating to database. This is optional when type is jdbc-driver. You may use this in place of user.
  • passWord - login password for authenticating to database. This is optional when type is jdbc-driver. You may use this in place of password.

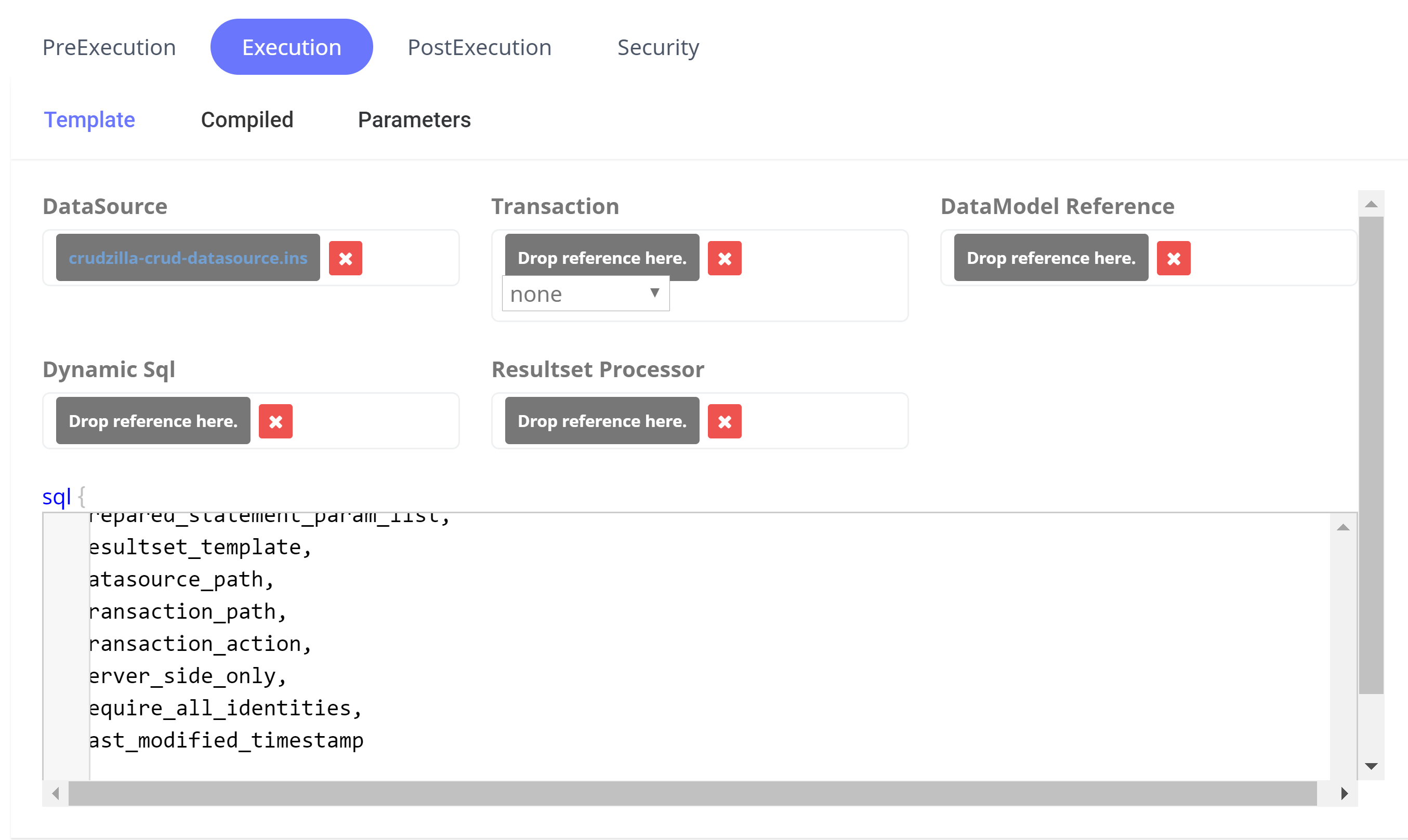

Template

Solvent gives the user a nice interface for specifying SQL. This tab contains the sql editor for entering an sql template. This template can include parameter specifications.


  • DataSource - Drop DataSource definition object reference here. You can create a DataSource object from the DataSource menu. The DataSource types are jndi,jdbc-driver,datasource. If the datasource type is specified, then it is assumed to represent a javax.sql.DataSource instance.

    You may also pass solvent_datastatement_datasource_config as the datasource dynamically.

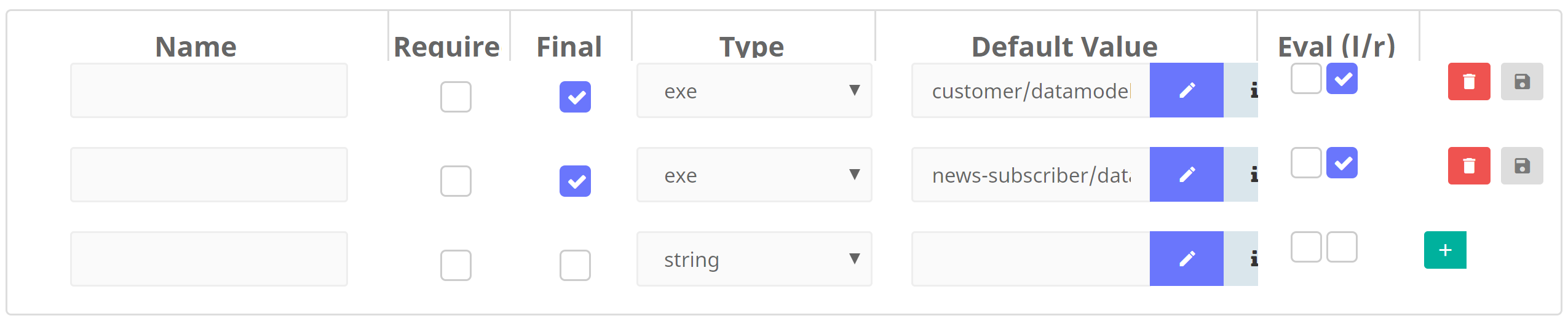

  • DataModel Reference - This is a list of DataModel References to be used by the sql in this DataStatement. Please see section on DataModeling for a detailed description of this technology.
  • Transaction - An object that represents a JDBC transaction. You can create a Transaction object by right-click on target folder then do New==>Application Object==>JDBC Transaction
    • none - do nothing
    • start - when selected, this DataStament would start a new transaction identified by the transaction object.
    • start_only - when selected, this DataStament would start a new transaction identified by the transaction object, but would not execute this DataStatement.
    • join - when selected, this DataStatement looks for the specified transaction and joins it.
    • commit - when selected this DataStatement joins the specified transaction and commits the transaction after execution.
    • commit_only - when selected this DataStatement joins the specified transaction and commits the transaction without executing the DataStatement.
  • Dynamic Sql - A Velocity template that contains the dynamic sql. When this is specified, the sql in the editor of this DataStatement is will not be executed directly.

    When using dynamic sql, the parameter solvent_dynamic_sql_resultset_template must be set, this should follow the format of the "Compiled" sql...see the "Compiled" tab of a non-dynamic sql DataStatement for an example of what a resultset template must look like.

    If SQL is entered in the editor for a DataStatement, it will be available as a parameter solvent_prepared_dynamic_sql_statement, meaning it can then be used in JDBC code that executes the actual database operations.

    You can also pass solvent_dynamic_sql_statement as the sql to execute. This provides flexible means to use DataStatements.

  • ResultSet Processor - A ScriptExecutor that processes the JDBC ResultSet object that result from running this DataStatement.

    This is an advanced capability which gives the developer full control over the processing of the resultset from an executed query. The resultset is available on the argument map as solvent_datastatement_resultset, this is a JDBC resultset object type.

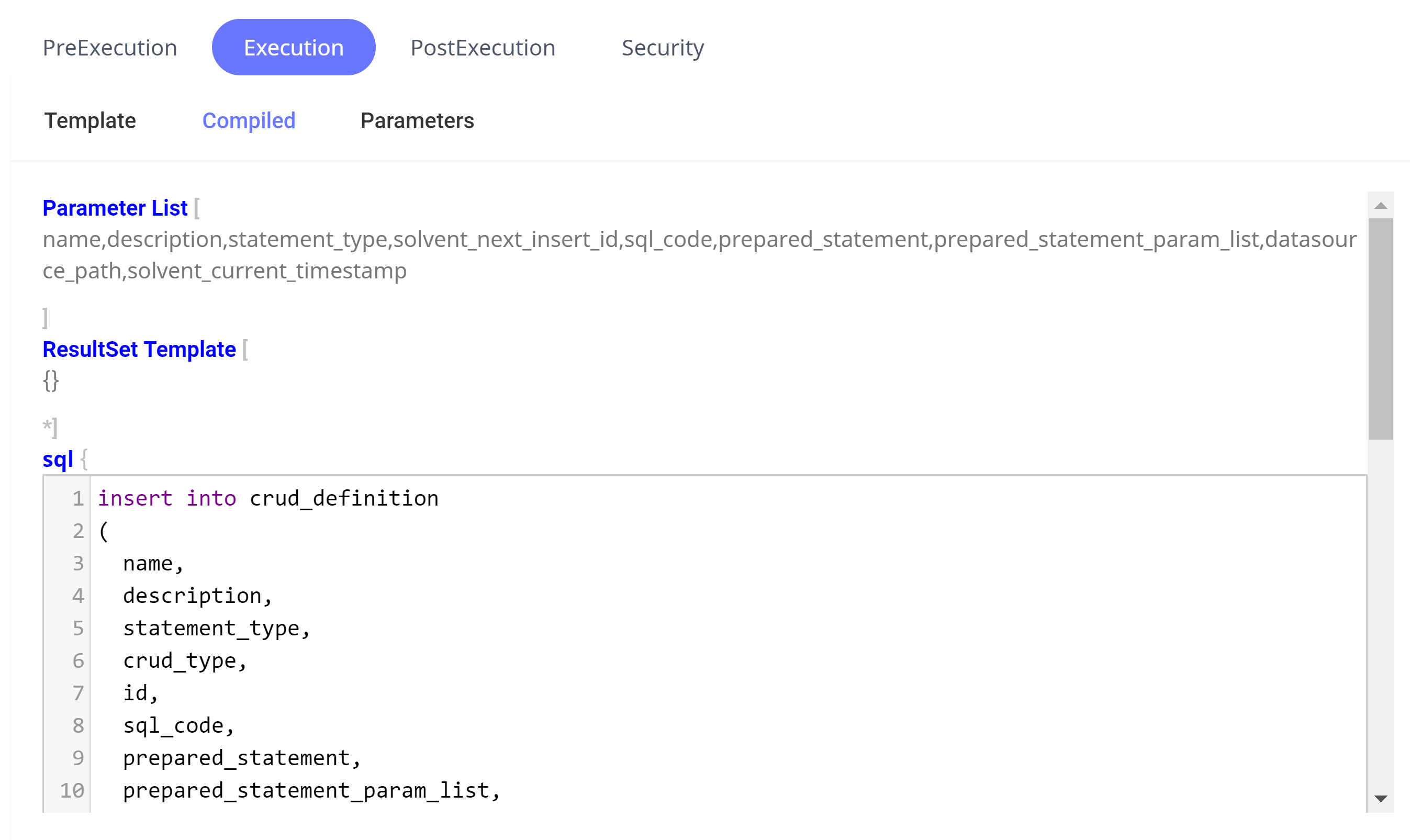

Compile

This tab shows the compiled sql in the Template tab. The template is compiled whenever a user saves changes to the template. All parameters are extracted and replaced with placeholders (?). This tab shows the Parameter List expected by this DataStatement and the ResultSet Template if this DataStatement returns values.

The platform parameter solvent_resultset_format is available for use with DataStatements. The value can be one of the following:
  • bean - to return the result as a single object
  • list - return result as a list. This is the default
  • decorated - return the result with column information. The resulting object has the form {"columns":[{"name","type"}],"rows":[{}]}.

DataStatements also support the platform parameter solvent_javalang_class. Set this to the fully qualified Java class name if you want the resulting data to be converted to a Java bean of the specified class type.

The platform parameter solvent_default_datasource should be set as part of solvent-app-settings/system-settings to specify a default data source for newly created DataStatements. This would be automatically filled in whenever a new DataStatement is created. Most business applications only have a single data source, so this would save the developer a few extra clicks.

Parameter Type Hinting

DataStatements support type hinting, this is useful for RDMSs that have strict type requirements for prepared statement parameters. To specify a type simply enclose the type in parenthesis following the parameter name. The syntax is as follows: :<PARAMETER-NAME>(<SQL/Java-Type>) When a type hint is supplied with a specified parameter, the following additional parameters may be supplied.

  • For types: BINARY, VARBINARY, LONGVARBINARY,CLOB,BLOB
    • Base64
      • solvent_base64_format_<PARAMETER-NAME>_linelength
      • solvent_base64_format_<PARAMETER-NAME>_lineseparator
      • solvent_base64_format_<PARAMETER-NAME>_urlsafe
    • Base32
      • solvent_base32_format_<PARAMETER-NAME>_linelength
      • solvent_base32_format_<PARAMETER-NAME>_lineseparator
      • solvent_base32_format_<PARAMETER-NAME>_urlsafe
    • Binary
    • Hex
      • solvent_hex_format_<PARAMETER-NAME>_charset
  • DATE
    • solvent_date_format_<PARAMETER-NAME>
  • TIME
    • solvent_time_format_<PARAMETER-NAME>
  • TIMESTAMP
    • solvent_timestamp_format_<PARAMETER-NAME>
BLOB,CLOB

you may also upload files in place of data for these types, so for instance you may call a DataStament in a multipart http request that includes an image file to be stored in a blob. The types supported are either Java types or SQL types, in other words JDBC types.

JDBC Transactions

Transaction support is easy to add, simply create a transaction object by right-click on target folder and do New==>Application Object==>JDBC Transaction

You must specify a unique name for your transaction object. The name must follow the java identifier naming syntax. A running transaction can be accessed on the argument map as solvent_transaction_<TRANSACTION-NAME> where <TRANSACTION-NAME> is the unique name of the transaction.

The solvent_transaction_<TRANSACTION-NAME> object has properties

  • transaction - a reference to the raw transaction configuration object, ie the Smart Object specified in the DataStatement.
  • connection - JDBC connection object for the transaction
Dynamic Transactions

The transactions properties outlined above can be specified dynamically in code. To dynamically pass a transaction config object pass it as solvent_transaction_object. Transaction action can be specified by passing solvent_transaction_action.

The file extension of DataStatement is "stm".

Smart Objects

Smart Objects on the Solvent platform are a vasatile and powerful capability that can be used to solve a variety of problems. Solvent doesn't rely on configuration files in formats such as xml, json or Java properties files. Instead the user can create named smart objects to hold configuration. These objects can be called in code or in parameter declarations. To create a Smart Object simply right click on the target folder and choose New==>Executable==>Smart Object.

The parameters of Smart Objects form the properties of the resulting object.

By default a Smart Object would return a generic java bean. If the platform parameter solvent_javalang_class is supplied, the object is of this type. The screenshot below shows the application settings for Solvent developer environment application as an example.

When a call is made to a Smart Object that returns an object, the object's properties can be referenced with the dot notation just like any other object, because they are in fact real objects.

Lists

A Smart Object that only has the value of properties without the corresponding names would be interpreted as a list. In other words to make a list, just add parameters that have no name.

If a Smart Object returns a List, this would be a java.util.ArrayList object.

The file extension of Smart Object is "ins".

Uploading Files

File uploads are one of several common tasks that developers always have to do when building a web application. As with doing database interactions, within the Solvent platform the user doesn't have to write code for doing file upload. File uploads are done using an executable construct called a FileUploader. To create a FileUploader simply right-click on taget folder and do New==>Executable==>File Uploader.

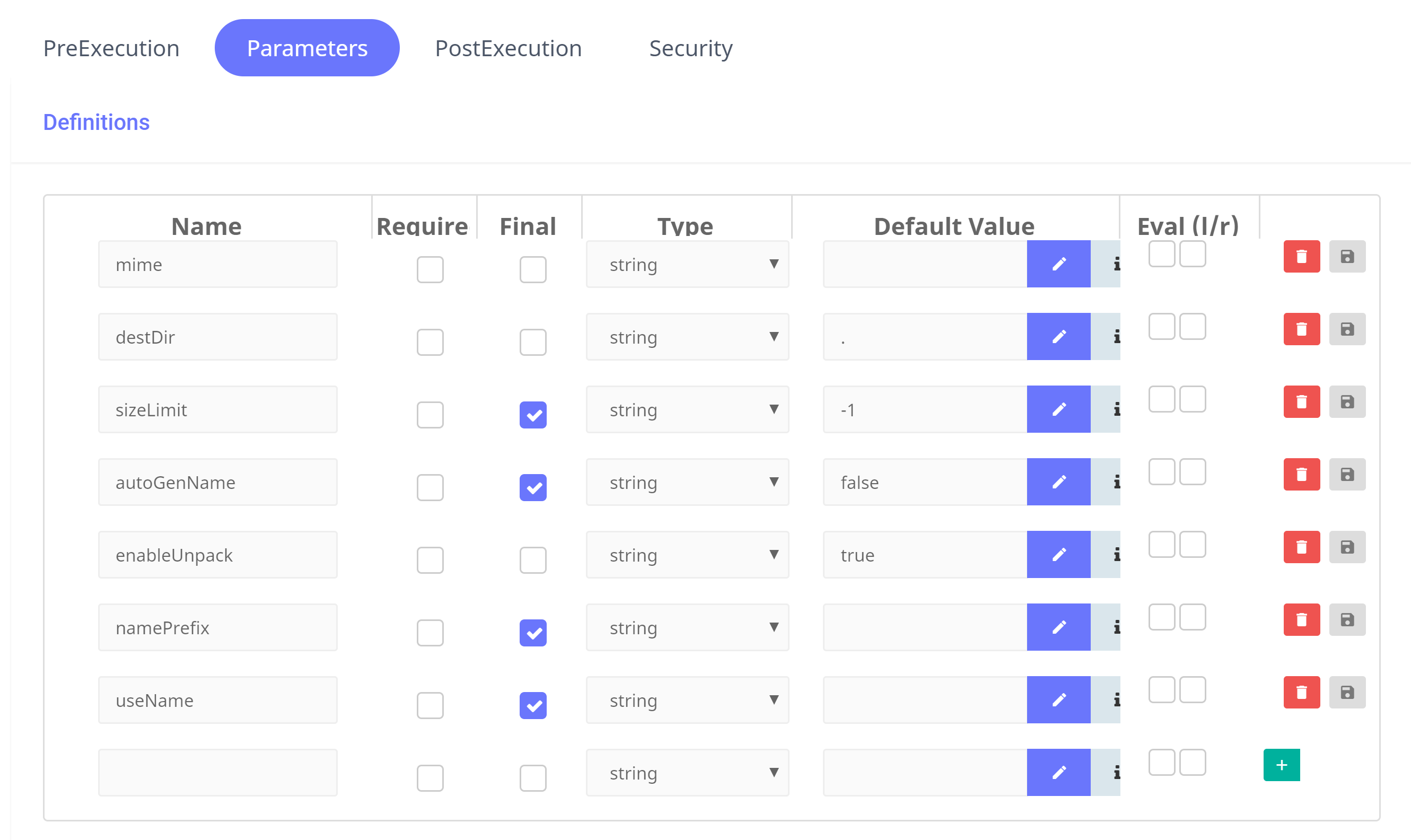

Properties

The following properties allows you to upload files and control how the uploaded file should be handled.

  • destDir - where to upload the file, by default it is ., meaning the working directory of the executable.
  • autoGenName - set to true if you want an auto generated name for uploaded file
  • useName - a name to use for uploaded file, if not specified and name is not auto generated then the original file name is used.
  • namePrefix - a prefix for auto generated file names.
  • sizeLimit - file size limit for uploaded files.
  • mime - mime type of uploaded file.
  • enableUnpack - set to true if you want to unzip uploaded zip files.
  • deleteOriginal - set to true if you want the original zip file to be deleted after unpacking.

Note, you may optionally set solvent_temp_upload_directory in solvent-app-settings/system-settings to specify a temporary location of uploaded files before they are moved to their destDir.

The file extension of FileUploader is "upl".

Connecting to HTTP Services

Solvent provides an executable called HttpConnector for connecting to HTTP services. User can use HttpConnectors to connect to RESTful services or even to download remote files and login to remote web applications.

As with many other aspects of using Solvent, HttpConnector connectors require writing no code. You only need to specify the necessarily parameters. To create an HttpConnector simply right-click on target folder and do New==>Executable==>Http Connection.


Properties

Use the necessarily combinations of the parameters below to connect to HTPP services.

  • url - url to connect to. If it is a string then it is assumed to be a single url, otherwise it can be a list of objects each with property url,destDir, saveAs,enableUnpack,deleteOriginal
  • headers - header for request. This can be an executable (Smart Object or ScriptExecutor) that returns the header object or a json defining header object. Note the header object is a single object with name/value pairs.
  • loginUserId - user name for http authentication.
  • loginPassWord - password for http authentication.
  • authenticationHost - this is option as it will be extracted from url if not specified
  • authenticationPort - similarly optional if url will be used for authentication.
  • download - Set to true if this is a file download.
  • destDir - directory to place downloaded files in.
  • saveAs - specify a file name to use for downloaded file. If not set, the Content-Dispostion response header is consulted, if this header is absent then the download url is assumed to end with a file name and that would be used.
  • enableUnpack - set to true if you want to unzip downloaded zip files.
  • deleteOriginal - set to true if you want the original zip file to be deleted after unpacking.
  • authenticationType - This can be
    • NONE - no authentication
    • FORM - for form based authentication.
    • PREEMPTIVE-BASIC - Authenticates before making the url request. basic authentication.
    • PREEMPTIVE-DIGEST - Authenticates before making the url request.digest authentication.
  • maxFileUploadSize - maximum upload size if this is a multipart request.
  • authenticationRealm -
  • authenticationScheme
    • basic
    • digest
  • postDataSourceType - for multipart request, this specified where to get files from
    • DATAFROM-HTTPREQUEST - when the files are uploaded as part of a browser based upload.
    • DATAFROM-FS - Use this if you want data to comre from file system.
  • postDataFileItems - json array of objects of the form {"path","paraName"}. path is the local file system path of the file to upload and the paramName is the http parameter name to use for this file.
  • method - http method
    • HTTP_GET
    • HTTP_POST
    • HTTP_POST_MULTIPART
    • HTTP_POST_CHUNKED
  • mime - for chunked post, what is the mime
  • type - not used
  • formPageUrl - url for form if form authentication is used.
  • authenticationUseridParamName - form user name http parameter name.
  • authenticationPasswordParamName - form password http parameter name.
  • callParameters - This can be an executable (likely a Smart Object) that returns the parameters object or a json defining the parameters object. Note the parameters object is a single object with name/value pairs.
Return value

The return value for this executable type is an object with the following structure :

  • headers - the headers returned by the request.
  • statusCode - the http status code
  • statusLine - the http status line text
  • response - the response body of the request
The file extension of HttpConnector is "svc".

Sending E-mail

Sending email is another common web application development task. As with other such tasks, no coding is required to send emails in Solvent. Solvent provides a construct called an EmailSender. To create an EmailSender simply right-click and do New==>Executable==>Email Sender.

You can send both single emails and bulk mail depending on how you configure the EmailSender.

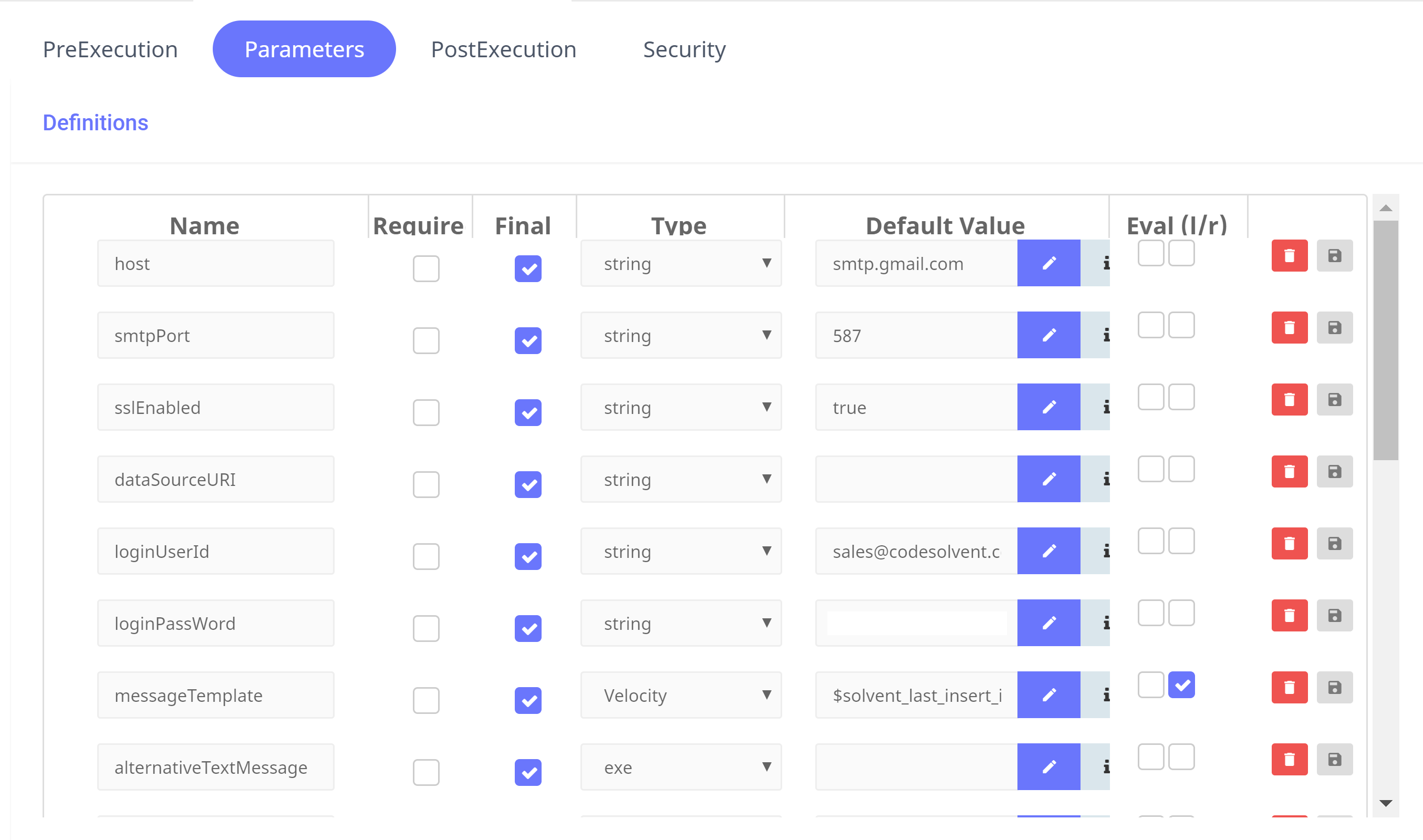

Properties

Use the necessarily combination of the following properties to send email

  • host - The smtp host name.
  • smtpPort - smtp port.
  • sslEnabled - set to true if you want ssl enabled
  • dataSourceURI - this is for embeded images.
  • loginUserId - login username for smtp server.
  • loginPassWord - pass username for smtp server.
  • messageTemplate - this can either be html text, plain text or the url of an executable that will generate the html. when it is a an executable url, it must be evaluated and the return object must be a string.
  • alternativeTextMessage - this can either be plain text, or the url of an executable that will generate the html. when it is an executable url, it must be evaluated and the return object must be a string.
  • bouncedMessageAddress - for bounced email.
  • bcc - a json array of objects of the form {"emailAddres","name"}, name is optional.
  • cc
  • replyTo - a json array of objects of the form {"emailAddres","name"}, name is optional.
  • headers - a json array of objects of the form {"name","value"}
  • type - for html email value is HtmlEmail, for text use SimpleEmail.
  • from - a json object of the form {"emailAddres","name"}, name is optional.
  • to - a json array of objects of the form {"emailAddres","name"}, name is optional.
  • subject - text of subject line
  • attachments - a json array of objects of the form {"path","name","description","url"}. path or url is required, all other fields are optional.
  • bulkMailData - Specify for sending bulk mail, this should be a list where each object is a unique email. For each object in this list, the values would be exploded onto the arguments map before processing the corresponding email.
  • forEachEvalMessage - Set to true if messageTemplate property must be evaluated for each bulkMailData entry.
  • forEachEvalAltMessage - Set to true if alternativeTextMessage property must be evaluated for each bulkMailData entry.
  • forEachEvalSubject - Set to true if subject property must be evaluated for each bulkMailData entry.
  • forEachEvalTo - Set to true if to property must be evaluated for each bulkMailData entry.
  • forEachEvalFrom - Set to true if from property must be evaluated for each bulkMailData entry.
  • forEachEvalAttachments - Set to true if attachements property must be evaluated for each bulkMailData entry.

The file extension of EmailSender is "esd".

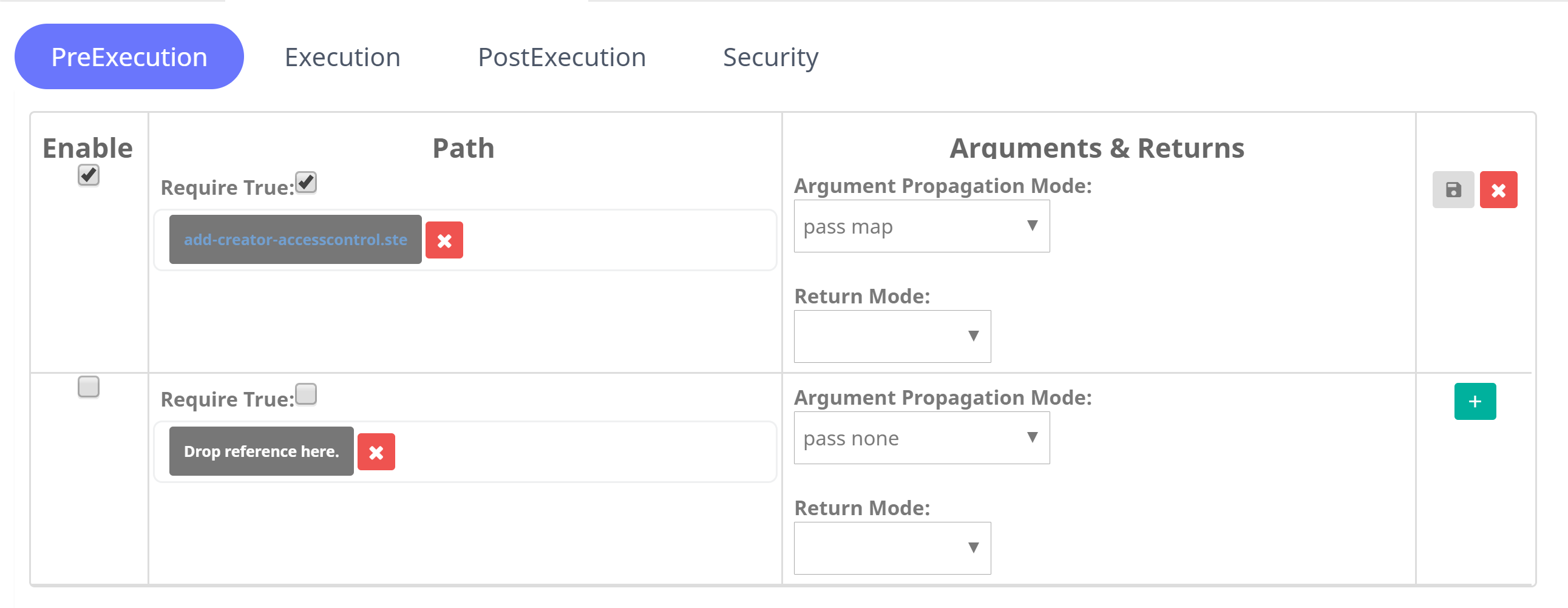

PreExecution Handlers

PreExecution handlers are actions you want to happen before the primary action of the current execution. This occurs after security checks and parameter processing has been applied.

Handlers simply call other executables within your application. For instance the handler could call a DataStatement to get some data that would then be used for the current execution.

  • Enable - check this to enable this handler. If unchecked, this handler is ignored and not invoked.
  • Drop reference here - drag-n-drop the executable you wish to execute as part of the PreExecution process, this is optional depending on argument propagation options.
  • Require True - check this if the handler invoked is required to return the value "true". If any other value is returned, then the primary execution would terminate and return the value.
  • Argument Propagation Mode - This controls how the argument map is propagated across invocations.
    • pass map - selecting this passes the current map as a reference, meaning the current map could be altered by the handler invoked.
    • pass all map values - selecting this propagates all values of the current argument map but not the map itself. The current map would not be altered by the handler invoked. Note, for values that are Java objects, they could be altered by the handler invoked.
    • pass some map values - selecting this allows you to specify a Smart Object that will return the name/value of the argument map values that will be propagated. This is a way to restrict which current argument map values are propagated to the handler invoked.
    • pass none - selecting this passes none of the current argument map's entries to the handler invoked.
  • Return Mode - The value selected determines what to do with return value.
    • Ignore Return - selecting this would ignore the return value of the handler invoked.
    • Save Return As Variable - Put return value from handler invoked on argument map. When selected, a field called "Save Return As Variable" is visible. Specify a variable name to be added to the current argument map that represents the return value of the handler invoked. The name can then be used in all places where argument map variables can be referenced.
    • Explode - selecting this, explodes the result of the handler invoked on the argument map.

      When this is selected, a field called "Selected Properties" would be visible, this is a reference to a Smart Object that would return the set of properties from the returned result to explode onto the current argument map. If the selected field isn't specified, all properties would be exploded.

      Note that the return value of the handler invoked should be an object, in other words not a list.

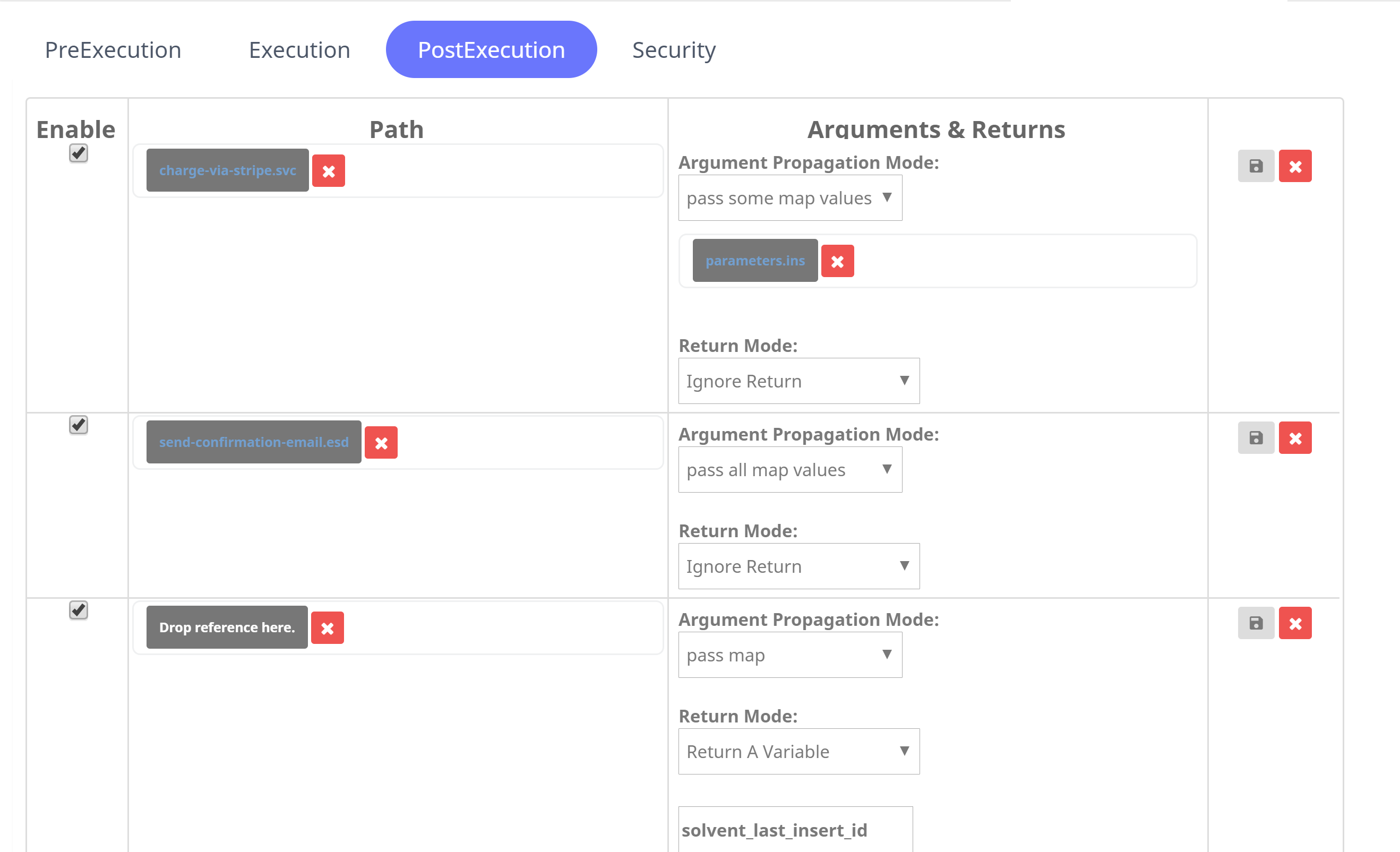

PostExecution Handlers

PostExecution handlers are actions you want to happen after the primary action of the current execution. You can return the result from these handlers as your final return values instead of the results from the primary action.

Handlers simply call other executables within your application. For instance the handler could call a DataStatement to update some data as a result of the current execution.

  • Enable - check this to enable this handler. If unchecked, this handler is ignored and not invoked.
  • Drop reference here - drag-n-drop the executable you wish to execute as part of the PreExecution process.
  • Argument Propagagtion Mode - same as in PreExecution
  • Return Mode - The value selected determines what to return as the return value of the primary execution.
    • Ignore Return - selecting this would ignore the return value of the handler invoked.
    • Return As Primary - selecting this returns the result of the handler invoked as the overall result of the primary invocation.
    • Append To Primary - selecting this, appends the result of the handler invoked as a property of the primary result object of the primary invocation. When this is selected, a field called "Append As Primary Variable" would be visible to name the property to be appended.
    • Append Primary - selecting this, appends the primary result of primary execution to the result of the handler invoked. When this is selected, a field called "Append As Primary Variable" would be visible to name the property to be appended.
    • Return Variable - selecting this allows you to specify the name of a property on the argument map that should be returned as the primary result of the primary invocation. When this is selected, a field called "Return Variable" would be visible to name the property to be returned.
    • Save Return As Variable - Put return value from handler invoked on argument map. When selected, a field called "Save Return As Variable" is visible. Specify a variable name to be added to the current argument map that represents the return value of the handler invoked. The name can then be used in all places where argument map variables can be referenced.
    • Explode - selecting this, explodes the result of the handler invoked on the argument map.

      When this is selected, a field called "Selected Properties" would be visible, this is a reference to a Smart Object that would return the set of properties from the returned result to explode onto the current argument map. If the selected field isn't specified, all properties would be exploded.

      Note that the return value of the handler invoked should be an object, in other words not a list.

Error Handlers

Error handlers are a special type of PostExecution handler, if an error occurs and there is an enabled error handler, that handler would be invoked as the last action.

The argument map would have an ErrorWrapper object crudError with the following properties

  • exception - Java Exception object. can be null if error wasn't due to an exception.
  • errorType - Error type can be of the following values
    • access-control - when access fails to be granted
    • parameterization-validation - when parameter validation fails
    • primary - when an error occured during primary action, this could be an error in scripts, check exception log for further details.
  • errorSource - attempts to give a clue as to where in the execution the error occured. The values can be one of the following
    • validation - during parameter validation
    • primary - during primary action execution

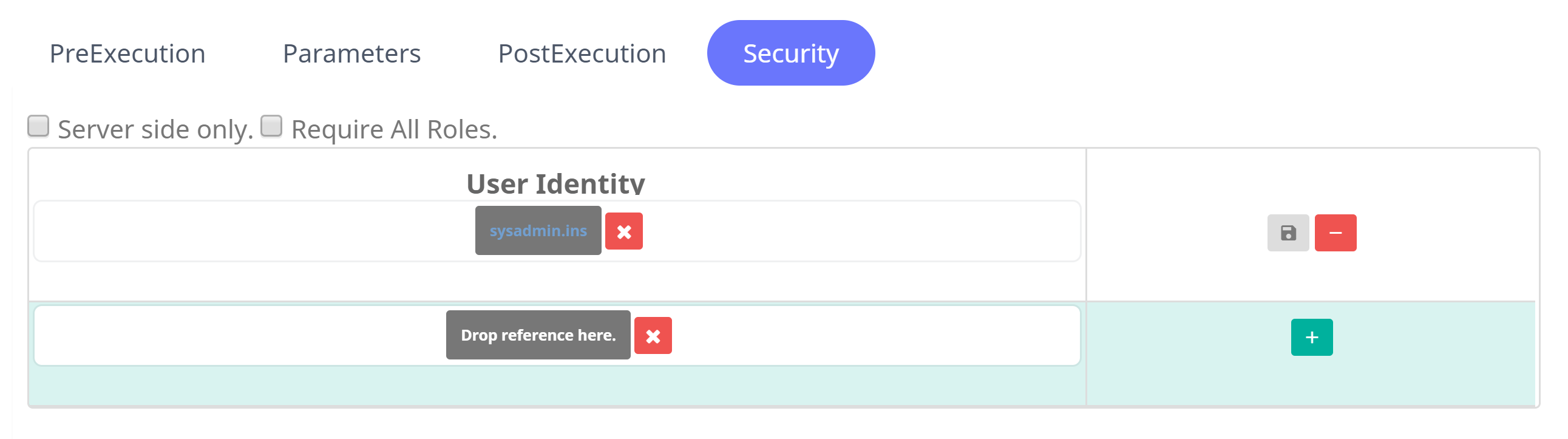

Application Security

You can restrict access to an executable by userName or by role. When userName is specified then httpRequest.getUserPrincipal.getName must be equal to the userName. If role is specified then httpRequest.isUserInRole must return true when given the role name. If both userName and role is specified then both must pass for access to be granted.

  • Sever side only - check this if you only want this executable to be invoked from server-side operations, for instance by other executables. This would prevent this executable from being invoked directly from a browser.
  • Require All Roles - check this if you want all user identity entries to be evaluated. This will require the user to have all the roles listed, otherwise access isn't granted.
  • User Identity - drop a refrences to a user identity object. You can have as many identity entries. Any entry to this list, automatically implies authentication is required. So for instances you can drop a user identity object whose user and role entries are blank to indicate that only authentication is required.

A user identity object can be created by right-click on target folder and doing New==>Application Object==>User Identity.

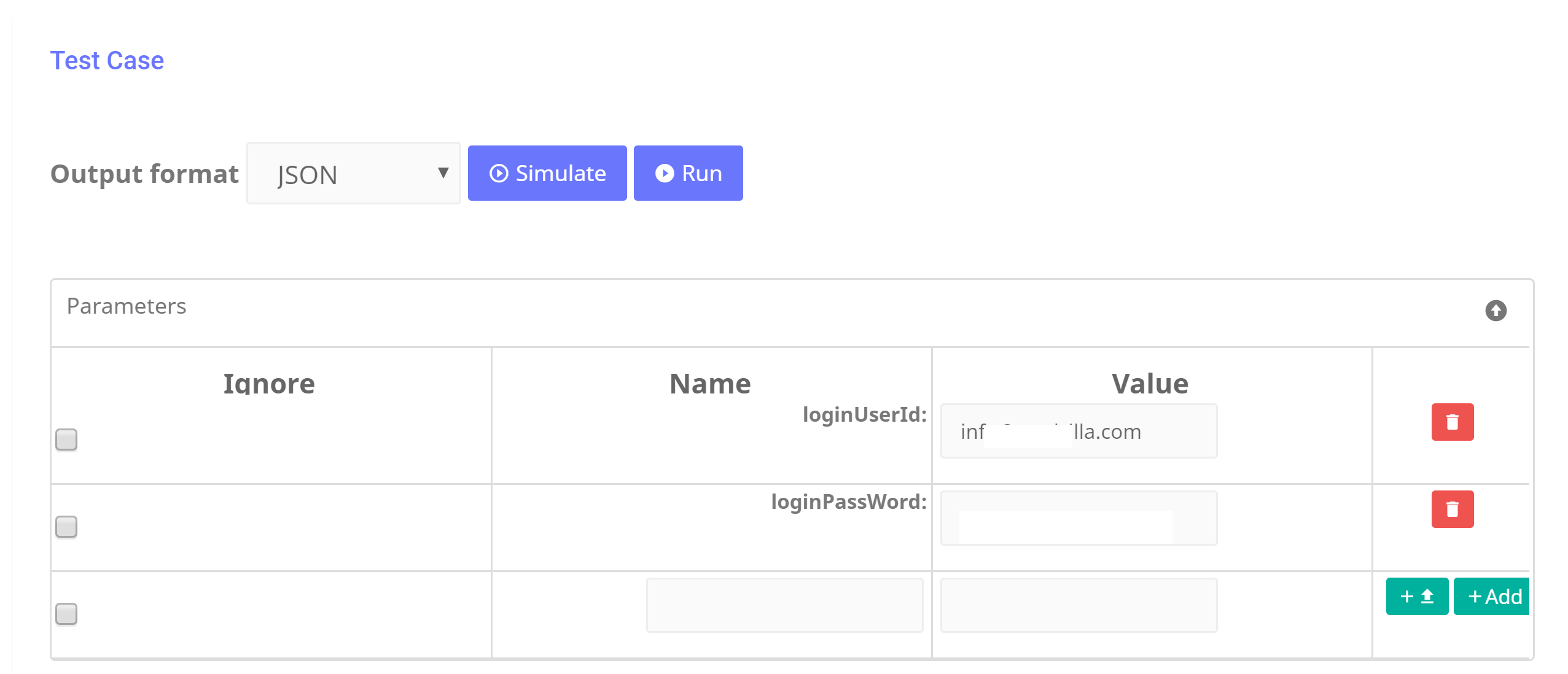

Testing Your Application

Testing your application involves testing executables. To test an executable your can right click the executable and select Test.
  • Output format - select the expected result type.
    • JSON - for JSON data.
    • Html Page - If you want the result to open in a new browser tab and an html page.
    • Text - if expecting plain text
  • Ignore - check this if you don't want the parameter sent to the executable being tested.
  • Name - parameter name
  • Value - parameter value

Simulate

When you simulate an executable, the executable is run in the context of a Solvent engine instance that attempts to simulate the instance that will be running in your application. You simulate if your app isn't running or if you want to test an executable that requires authentication but you would like to bypass the authentication for the purpose of testing.

Run

When you run an executable or any other static asset, the test invokes a url directly against a running app. In other words when you run a test, it is assumed that your app is running at the url specified in the app context.

Source Control

Solvent supports source control via Git. All artifacts within the Solvent environment can be checked into source control.

Extending the Solvent Environment

The Solvent developer environment is self-referencing, what this means is that Solvent is used to build Solvent, similar to how eclipse or netbeans may be used to build new versions of themselves. There are a number of functionality in Solvent where you directly alter the functionality by modifying certain execs.

Adding CodeMirror Modes

CodeMirror is the editor used for coding in Solvent. You can add aditional editor modes to edit text files. Adding new modes involves the following steps

  • Current modes are defined in the folder com/codesolvent/Solvent/web/editor-mode-definitions. Navigate to execbase and open this folder.
  • Create the new mode via right-click New==>Application Object==>CodeMirror Mode.
  • Fill out the mode fields, see other modes for examples.
  • Map mode to an extension by adding an entry to the com/codesolvent/Solvent/web/editor-mode-definitions/codemirror-editor-ext2modes Smart Object.
  • To add a new mode to the Web Resource menu, add an entry for the new mode to the com/codesolvent/Solvent/web/editor-mode-definitions/editable-types Smart Object.
  • When you refresh, if you added a menu item then the new mode will have a menu item and you should now be able to create files of this mode.
Adding new loggers

You can add logging from additional classes that you may have in jar components. This can be done both for Solvent and your own apps, so if you are building or using a Java component that is packaged as a jar and deployed with your web app, you can access the log output from classes in such a component in the Solvent developer environment log-viewer by configuration.

  • Solvent has a folder /dev-logging/classes in the base (web) folder of that application. By default this folder has configuration for logging from the exec execution engine. Open this folder to add new log configurations.
  • Create the logger config via right-click New==>Application Object==>Logger Config.
  • Fill out the mode fields, see other logger configs for examples.
  • To enable logging from this newly added class, open the dev-logging/classes/class-list Smart Object and add an entry for the newly added class logger config.
  • You'll need to restart Solvent for this to take effect.
Altering App configuration

When you create a new app a new configuration is created to register that app with Solvent. This configuration is the same as the object created if you right-click a folder New==>Application Object==>Web App. All app configs are stored in folder com/codesolvent/Solvent/web/new-web-app/app-list. They have the same name as the app and they are registered by addng an entry to com/codesolvent/Solvent/web/new-web-app/app-list/apps. The contextPath propertie is important as it points to the url of the app and this is used for testing execs that belong to this app and also for the logviewer feature to work correctly.

Adding new users to your Solvent installation

You can manage users using the simple tool from the application menu. You may also build on this tool for more surphiscated user management. Folder com/codesolvent/Solvent/web/user-identity contains executables for managing users.

Backing up your Solvent environment database

It is recommeded that you run a regular backup of your work. Solvent supports backing up both your environment database (likely the embeded derby database).

To run a backup select Run Backup from Application menu.

The backup resources are all stored in your asset directory in the folder solvent-backup-snapshots.

Note that you should be using source control to save these backups if you ever need to.

Logging

Solvent supports logging during development. See section on Programming Solvent for steps on how to configure logging.

You can view log output for an application that is currently running from the application menu.

Note that to configure production logging for your application, you'll need to integrate your preffered logger and configure it. The logging in the Solvent development environment is for development only and isn't persisted to disk. The Solvent development environment uses log4j, you may setup something else for your production use.

Within any code executed in solvent the exec object has a method logger() for logging. It returns the apache commons logging org.apache.commons.logging.Log object.

Configuring Applications

You set application configurations via entries in solvent-app-settings/system-settings.

You need to specify the base directory of your application assets including executables. There are varous directories that can be set. By Default these are set to the asset directory sub-directory that your application is created in, that is the home directory of your application (<path-to-your-app-directory>/web). You should only need to set most of these for production deployment, not during development.

  • solvent_static_file_base_dir - Where static resources such as html, javascript,image and css files are stored. You may leave this blank in which case the app-home servlet init parameter value would be used.
  • solvent_monitor_crud_changes - points to configuration for executable file change monitor for hot swapping of executables.
  • solvent_velocity_template_root - This is the base directory for the Velocity template engine, Velocity would look in this directory for template files. You may leave this blank in which case the app-home servlet init parameter value would be used.
  • solvent_serve_static_content - set to true to enable the serving of static resources. It is true by default.
  • solvent_engine_startup_handler - pointer to an executable that should be run whenever the Solvent middle-ware layer is initialized.
  • solvent_asset_base - This simply states how many levels up from the developer studio application executable resource directory is the asset directory. This should not be modified, it used internally.
  • solvent_welcome_files - comma seperated list of default directory files.
  • solvent_url_mapper - Points to a Smart Object that replaces a native executable url with a user-friendly version. Each parameter entry represents one such mapping. The name of the parameter would be the user-friendly alias while the value has the actual executable path.

    Note that this must be a map, in other words the Smart Object pointed to must have the parameter solvent_javalang_class set to map.

  • solvent_interceptor - an executable that serves as a central controller for all requests to the Solvent middle-ware. Set this if you want control over all requests to your application. The argument map will have a variable named solvent_requested_resource, this holds the actual request resource path. The argument map will have a variable named solvent_requested_serverside, when set to false, indicates that original request came directly from browser.
  • solvent_temp_upload_directory - temp filesystem location for file uploads.
  • solvent_http_output_mime - set the global mime type for velocity templates.
  • solvent_http_passthrough - set to true to allow velocity templates to stream output directly to httpResponse, this is default behaviour.
  • solvent_default_datasource - set this to the path of the default DataSource object for DataStatements.
  • solvent_variable_selector_switches - see NVP Processing section for details on Variable Selection.
  • solvent_user_profile_initializer - path to an executable that will return a user profile object, see User Profile section.
  • solvent_evaluate_user_supplied_values - default is false. set to true if you want to enable expression evaluation on parameters whose values may have been user supplied. By default all parameters with their eval checkboxes checked are required to be final otherwise the evaluation would not be performed, set this parameter to true to override this default behaviour.

    Note setting this to true is a potential security risk.

  • solvent_module_base - filesystem to locate modules.

app-home is set in your application's web.xml file, by default it is a relative path, ie relative to the asset directory which is solvent/solvent-apps/solvent.

You may also specify an absolute filesystem path for app-home.

User Profile

The Solvent platform provides a mechnism that makes it easy for your application to use elements in a user's profile. A user's profile is simply imformation about the currently logged in user, this can include name, contact information and any other information that you want to associate with a user's profile in an application.

In your solvent-app-settings/system-settings, set the parameter solvent_user_profile_initializer to an executable (likely a DataStatement) path that returns the user profile object. For instances this can be a DataStatement that uses the solvent_user argument map property to lookup the id of the user which can be used to associate the user with elements in a multi-user application.

You can certainly get your user profile information ondemand, ie at the moment you need it in your application, however this mechanism allows you to setup user profile retrieval once and then easily use elements of the profile all over your application.

All elements of the user profile can be accessed in your application using the name pattern solvent_user_<ELEMENT-NAME>, where <ELEMENT-NAME> is a property in the user profile object returned, such as id.

The user profile object is stored in the http session(httpRequest.getSession()) as solvent_user_profile, to invalidate this object, simply remove it from the session, it will be reloaded next time a user request is processed. You may also manually [re]load it by setting the session attribute.

Note that the argument map property solvent_user is assumed to be the way you identify a user's profile. This property is available once a user is authenticated.

Application Initialization

When the Solvent engine is started, you can register a handler to be called. This can be any executable type though it should be a ScriptExecutor that will take care of startup tasks such as setting up logging.

In your solvent-app-settings/system-settings, set the parameter solvent_engine_startup_handler to your startup executable path.
Note, this parameter should not be evaluated, just the path to the executable is required, the engine will execute it once full engine setup is complete.

By default new applications have a folder called /app-startup with a Groovy script on-crud-engine-startup.ste, you can simply use this.

Deploying Applications

The Solvent product is built on top of the jetty container. When you are building your application it will be running in jetty. You can deploy your finished application to another application server of your choice though the existing setup is recommended unless there is solid reason to use a different java appserver/container.

The key jar dependencies are outlined as follows.

  • solvent/lib/ext/solvent contains all Solvent dependent jars.
  • All jars in solvent/lib/ext/solvent/core are required to run executable applications except
    • ant.jar - required for development only unless you want to use ant in prod.
    • ant-launcher.jar - required for development only unless you want to use ant in prod.
    • log4j.jar - if you are not using log4j in prod then you must include your preferred logging implementation.
  • In solvent/lib/ext/solvent/jvm-language-support the required jars are
    • commons-jexl.jar - jexl language support.
    • groovy-all.jar - groovy language support.
    • velocity.jar - velocity template support.

    The jars below are required if you use the given languages in your applications

    • js.jar - if you use javascript.
    • jruby-complete.jar - if you use ruby.
    • jython.jar - if you use python.
    • clojure.jar & clojure-jsr223.jar - if you use clojure.
  • jars in solvent/lib/ext/solvent/dev-tools are only required during development.
  • Additionally, jars in solvent/lib/ext/mail include the Java mail api and implementation. Your production environment may or may not have the required Java mail support.

    The Solvent EmailSender executable type uses the apache commons mail component which requires Java mail support.

Solvent Multi-User Environment

Solvent has a robust multi-user environment. By default users with the role non-developer will be restricted to a per user home directory located in solvent-user-home. All file system and taxonomy actions will be restricted to the user's home directory.

All system level actions are restricted as well. Every user has their own home directory when their account is created. The home directory is transparent to users so a user doesn't know their actions are limited to their home directory.

Collaboration

Users can share access to their work with other restricted users using the content sharing mechanism built into solvent.

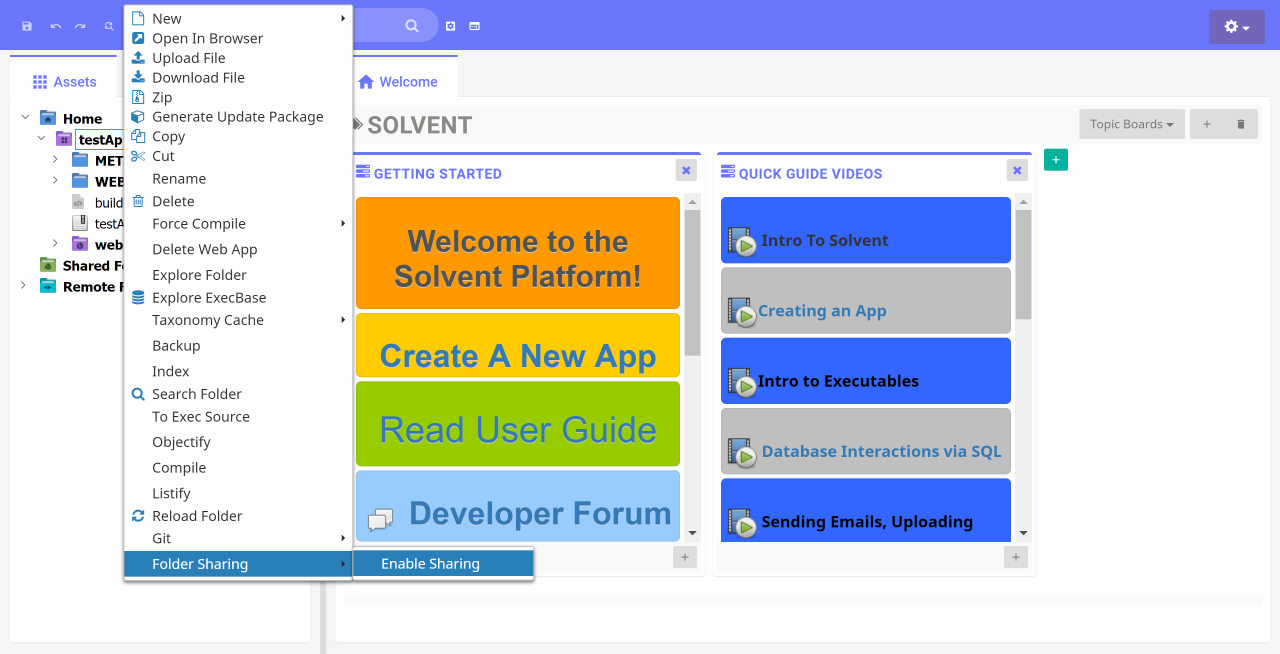

To share a folder, right click on it and select Folder Sharing==>Enable Sharing

All shared folders should be given a suitable name description so other know what they're getting access to. Note that a user can only share a folder that has an entry in the ExecBase.

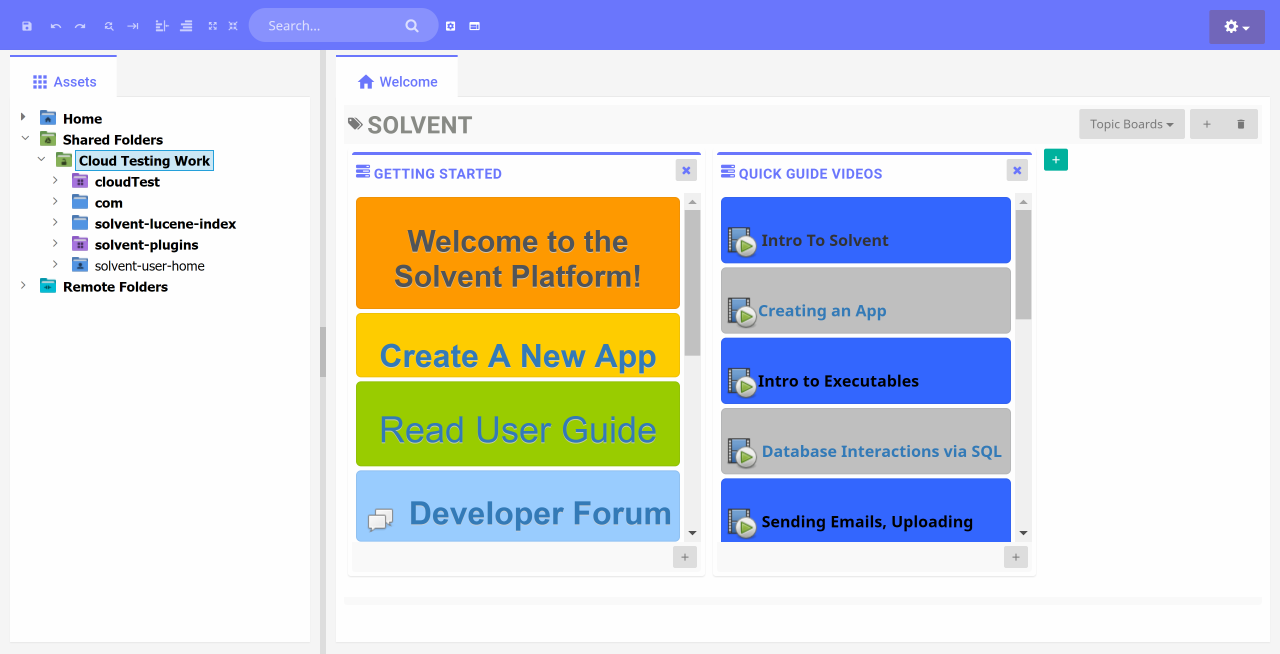

After a folder is shared, reload the Shared Folders node to see all the folders you're sharing.

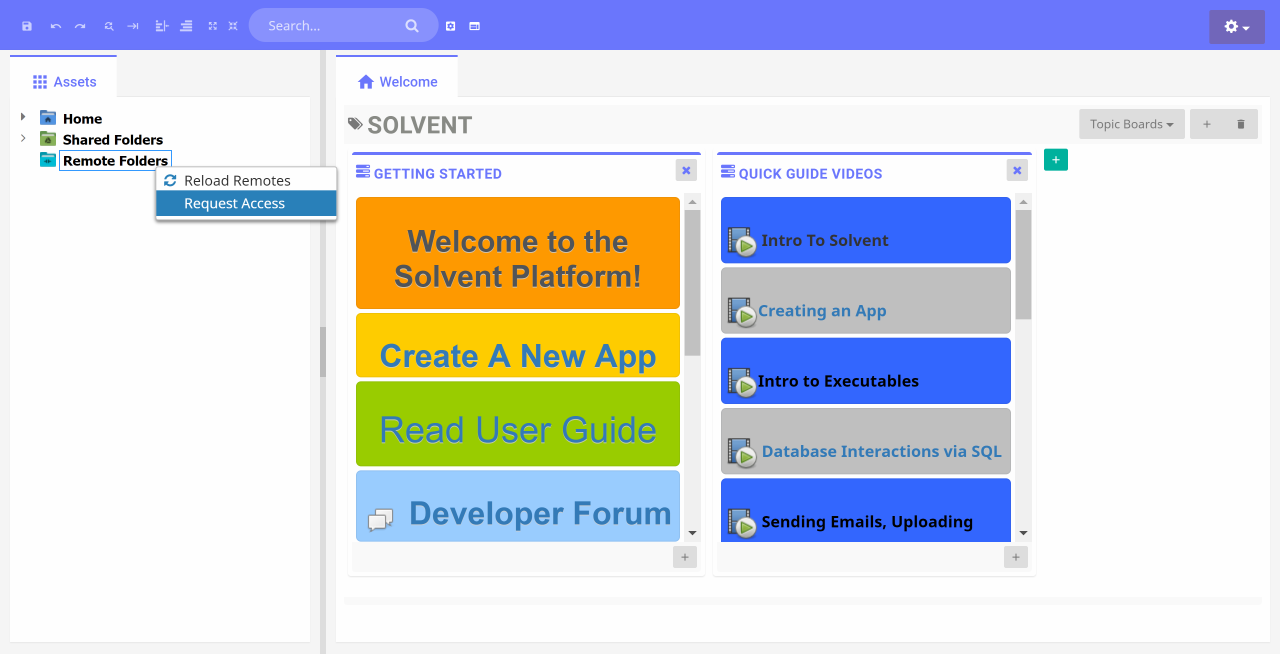

In order access to another user's shared content, a user must generate access request code. In other words the owner of content cannot just grant access to another user, they must grant access to a specific request. This approach is robust and can serve varied deployments including SaaS deployments of Solvent.

Upon request by the user who wants access, a code is generated that should be given to the owner of the content. This code is a cryptographic hash that is valid for 24 hours, a new code would need to be generated after that.

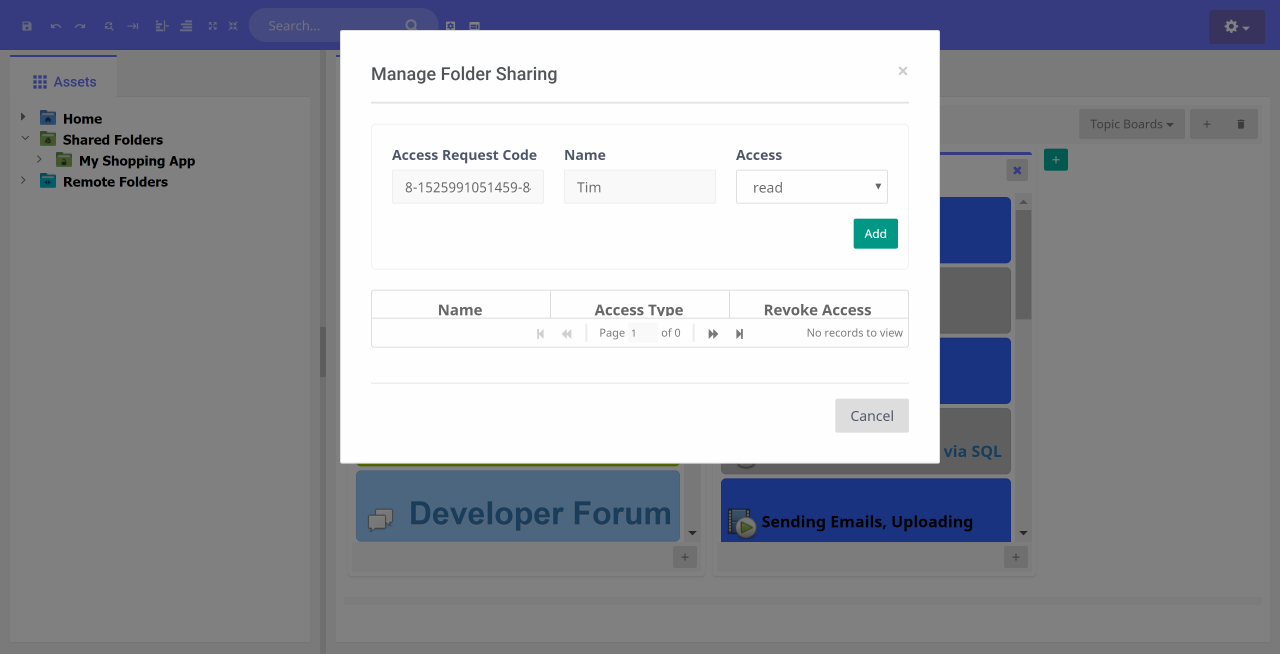

The owner of a shared folder can grant access to it by right clicking on it and selecting Manage Access.

A new access grant for a shared folder can be associated with a user.

A user can manager all access granted for a given folder and can revoke access as well.

All folders that a user has access to can be viewed under the the Remote Folders node. When a user is notified of access to a new remote folder, they should reload this node to see it.

Ordinarily when you want to add a new data model to your application, you create a table to represent the model and add columns to represent the fields of that model. What the Solvent PSDM technology suggests is to use the database table and columns as storage devices instead of modeling constructs.

The data modeling technology built into Solvent allows you to create DataModels in Solvent and map them to database tables and columns. When you use Solvent data modeling, you view the database tables and columns in your application database purely as storage devices. When you want to know what your actual data models look like you'll look at your Solvent DataModels not your database tables and columns.

Note that this is still an experimental technology. However it is very much in use, for instance it is used with Solvent for the task manager functionality and also used for the Parts Store.

Creating Premptive Schema tables

The first step towards data modeling in Solvent is to create the Preemptive Schema database tables. This means creating one or more database tables each with its own pool of columns of various sql type distributions.

Below is an example of what a Preemptive Schema database table looks like, note the distribution of sql types. It is up to you and your need to decide what the sql type distribution should be for your Preemptive Schema tables.

You should view a Preemptive Schema table as a large matrix that holds data. The data modeling in Solvent provides the mechanism to make sense of the data in the matrix.

Generating Preemptive Schema table sql create statement.

To generate the sql shown above, you need to create a generation strategy.
Note that all steps outlined below are optional, you can use any other means to create a database table with a pool of columns of various sql types. The generation facility provided by Solvent is only for convenience but not required.

  • Create a folder, where your strategy information would be stored.
  • For each sql type you wish to create columns for, create the generated column type. From the Data Modeling menu:

  • Fill out the Generated Column Type. The count is the number of columns of this type that should be generated.

  • Create a Smart Object and list the created types in it. Make these types executable.

  • Create a "Generated DataTable Strategy" ... this should point to the list in the step above.

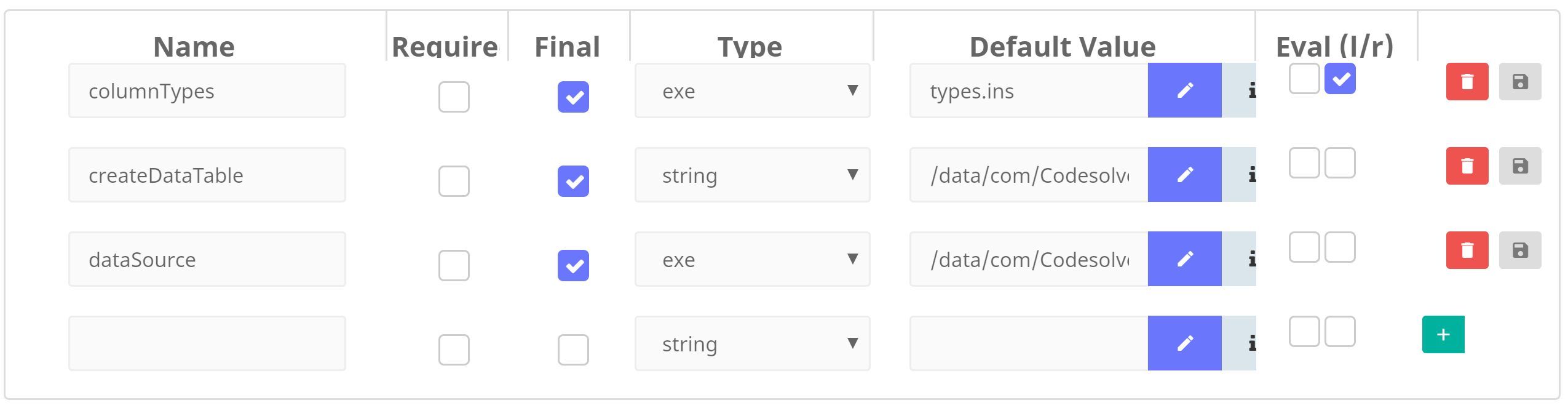

  • Fill out the strategy fields.

    • columnTypes - Specify the path to the type list created above.
    • createDataTable - Specify a dynamic DataStatement that would accept the generated create table sql and execute it. This DataStatement should expect a parameter sql which is the sql we are going to generate.
    • -OR-
    • dataSource - Alternatively, you can simply specify a DataSource against which the generated sql must be executed, Solvent would take care of executing it.

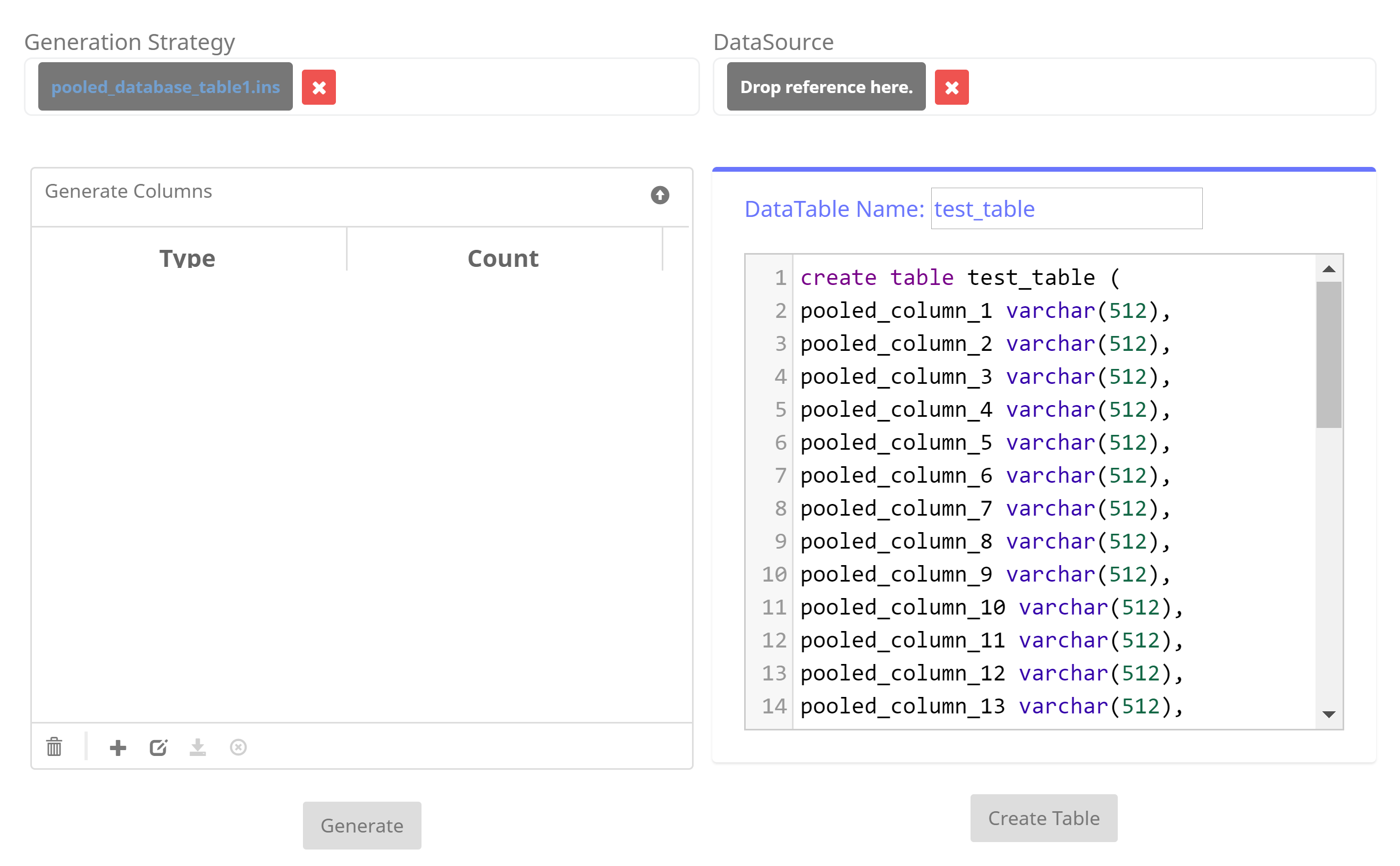

  • Solvent provides a simple tool for generating the necessary sql statements for creating Preemptive Schema tables. You can access the Preemptive Schema generator from the Application menu.

    Data Modeling==>Generate Preemptive Schema
  • Preemptive Schema table Generator Tool

  • Drop a reference to the strategy created above
  • Click the Generate the button to generate the create statement sql template, change the name of the table you wish to generate
  • Click the Create button to run the generated statement.

    Note that this is optional as you can just run the generated sql in an sql client of your choosing against your application database.

Create DataTable Object.

After creating a Preemptive Schema table as outline above, you need to create a corresponding DataTable object in Solvent that will be used to map DataModels to the actual database table.

  • Create a folder, this folder should have the same name as the Preemptive Schema database table it represents. The DataTable object should be called datatable.

  • Fill out the fields of the DataTable created above.

    • codesolventJavaLangClass - The codesolventJavaLangClass is used internally, do not edit.
    • dataSource - Provide the DataSource/database to which this DataTable database table belong.
    • name - Provide the name of the actual Preemptive Schema table created above.
    • typeColumn - This is the column object that will be mapped to type fields of DataModels
Generating DataTable Columns.

After creating a DataTable object as outline above, you need to create corresponding column objects that will be used to map DataModel fields to actual database table columns.

  • Under your DataTable object folder create a sub-folder called columns.
  • Right-click on the columns folder and navigate to the Data Modeling menu and select "Generate Columns".

  • Drop a reference to the DataTable created above.

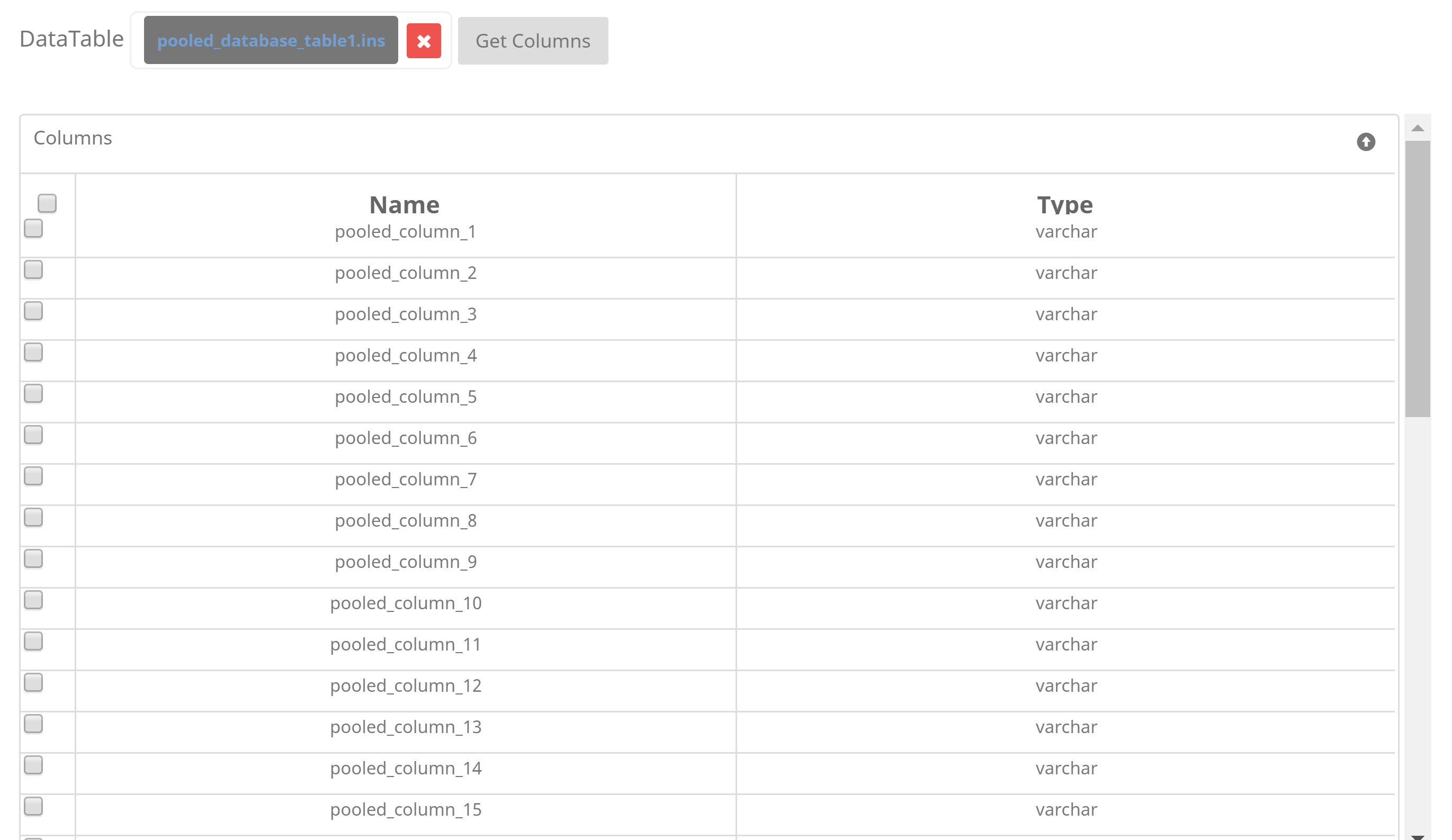

  • Click the "Generate" button to get the available columns from the Preemptive Schema database table created above.

  • Select the column objects you wish to generate, generally you'll select all.
  • Click the "Create" button to generate DataTable Column objects in the folder you right-clicked on above.
  • This will create DataTable column objects that you are going to use for mapping to DataModel fields.

    The column objects generated will be named following the convention <Premeptive-Schema-table-column-name>-<sql-type>

  • You shouldn't have to edit the generated column objects.

Creating a DataModel

We now need to create the actual DataModels that will represent our application data models such as say customer, order, inventory...etc.

The first step in creating a DataModel is to determine a namespace for the model. Because you are going to be storing instances of numerous models in the same Preemptive Schema database table, you need a way to uniquely identify rows that below to a particular model. The proposed approach is to use the java package naming convention as a way to create namespaces.

So for instance a DataModel called customer could be stored in the crudbase as com/codesolvent/solvent-website/data/customer. This path which is relative to the application base directory then becomes the type identifier for all customer rows.

The path can be relative to any folder, as long as it is likely to be unique across any number of different DataModels, this would be sufficient to uniquely identify a given DataModel type.

There should be a field that all DataModels have that specify what their type namespace is. The field name should be codesolventType and it should have the namespace value for all instances of the DataModel.

Automatic approach

The easiest way to create your Data Model is to use the DataModel creation tool:

Select a Premeptive Schema table (aka WideTable) to map your model to and then fill in the fields and their corresponding column mapping.

Manual approach
  • In your namespace folder, create a folder to hold your DataModel. This folder should have the name of your DataModel that you'll use in your sql statements, for instance customer
  • Right click on the folder and navigating to the Data Modeling menu to create a DataModel object.

    The DataModel object should be called datamodel.

  • Fillout the DataModel object.

    • codesolventJavaLangClass - do not use, used internally.
    • fields - path to the field list of this DataModel, this should be fields.ins
    • name - name of DataModel to be used in DataStatement sql, that is name of the folder created above.
    • dataTable - path to DataTable object created above, this establishes the connection to actual Preemptive Schema database table.
    • typeIdentifier - type namespace of this model, this will be used internally by Solvent for certain tasks.
Creating DataModel Fields
  • Under your DataModel folder, create a sub-folder called fields.
  • For each field of your DataModel, right click on fields folder and create the DataModel fields by navigating to DataModel Fields menu.

  • Fill out the DataModel Fields.
    • solvent_javalang_class - should not be altered, it is used internally.
    • column - drag-n-drop one of the column objects that were generated earlier. The value should be the path to the draged-n-droped column
    • name - name of the field. This would be used in all sql statements to reference this field.
    • useAsLabel - set to true if the name should be automatically used as the label for the mapped column in instances where the AS clause isn't used in sql select statements.
  • Under the DataModel folder create a Smart Object list to hold the fields, this object should be called fields. You must add all the fields your created above to this list.

Create DataModel reference

A DataModel reference is a Smart Object list of DataModels that have been defined as required above. You create any number of references depending on which DataModels you want to use. These references would then be dropped on the appropriate DataStatement that uses them.

DataTable Summary
DataTable layout

Your DataTable should be layed out as demonstrated below. Below the columns folder contains DataTable column objects generated as outlined above.
Note DataTables need not follow the Java naming convention, however you should organize all your DataTables in an appropriate manner.

Simplified steps for creating a DataTable
  • Create a folder with the same name as your Preemptive Schema table.
  • Under this folder, create a DataTable object and it should be called datatable.
  • Fill out the fields of datatable
  • Under the DataTable folder create a sub-folder called columns
  • Right-click on the columns folder, and generate the DataTable column objects
DataModel Summary

As further clarification, when you are done with the steps outlined above your crudbase should have the following layouts.

DataModel Layout

The following diagram shows what the layout for a typical applications DataModel should be. In this diagram we see a DataModel for customer.

Simplified steps for creating DataModel
  • Create a namespace that follows java package convention.
  • Create a folder under the right namespace with the name of your DataModel
  • Under this folder, create a DataModel object and it should be called datamodel.
  • Under this folder, create a Smart Object called fields
  • Under this folder, create a sub-folder called fields
  • Under the sub-folder fields create your DataModel Field objects
  • Make sure there is one field called codesolventType
  • Fill out all fields for your DataModel fields
  • Add the executable path in the fields Smart Object for each DataModel Field and make sure evaluation is enabled for each entry.

These layouts together describe what a DataModel in Solvent looks like.

Screencast

Screencast

The Solvent developer product provides a powerful visual development environment. This feature allows for UI frameworks such as bootrapped, ionic, foundation ..etc to be used in a visual drang-n-drop way to build UIs.

There's currently no tooling for enabling a particular framework but you can do so manually. /com/codesolvent/Solvent/web/html-layout/frameworks contains framework definitions. To add a new framework simply follow the bootstrap example included.

The pattern for defining a framework is to define all components that can be drag-n-drop, define whether they accepts other components. For additional help please visit the google group. We'll provide additional info later.

What are UI Parts

UI Parts are visual components that developers can use to quickly build applications. There is nothing foundamentally different about UI Parts other than the fact that they are built with the expectation that they'll be used on the Solvent platform and the end-user-developer would be integrating them visually. In other words, a UI Part is a component that can be designed/configured visually and allows the end-user-developer to only specify what is essential, such as custom logic.

You as the UI Part builder can make your part as visually sophiscated as you deem necessary, the Solvent platform prescribes no requirements for how to build parts other than defining an integration interface.

For instance let's say you build a part using the jqGrid jquery library. You'll want to provide a means for the end-user-developer to visually create columns and drag-n-drop a DataStatement to get the data from. You as the part developer would handle making sure that when your part is loaded at runtime it behaves accordingly.

The most basic example of a UI Part would be html/css/js snippets as you can find on sites such as bootsnip.com. Now imagine more sophiscated components that can integrate with other components and integrate with a back end, that is what parts are.

Ultimately UI Parts are about leveraging another developer's work in as painless/effortless a manner as possible.

Markup dependencies

A markup dependency is how you instruct the Solvent UI builder to select the appropriate html element when a drag-n-drop is performed.

To declare a dependency, specify the attribute data-solvent-depends-on on an element. This is a comma seperated list of JQuery/CSS selectors.

The Solvent UI builder would load these dependencies in the order they are listed. For instance, a certain html snippet may depend on a set of css style definitions, in that case the css style tag would be listed as a dependency to be loaded before the html snippet.

If an element is drag-n-drop and no markup dependency is declared on it, then the element is inserted into the active document.

However if a markup dependency is declared, the element that is dragged is never automatically dropped onto the active document. If this element needs to be dropped, then you must list it as a dependency. In order words an element that has dependencies that includes itself should list itself as a dependency.

Below is an illustration of how to declare markup dependencies:




External dependencies

An external dependency is an external file that needs to be downloaded and placed in the right directory within the current application for the drag-n-drop to work properly.

It can be a Javascript library dependency, for instance JQuery or an image,or backend logic, basically anything required for the given component to work properly.

The attribute data-solvent-external-dependency-src is used to specify external dependencies. This attribute is a comma seperated list of of previously defined dependencies as described in the UI Part Javascript interface section. It can also simply be the urls for the depended-upon resource.

For instance if a script is a dependency, then that script could define this attribute and have it point to the url to download this script. Similarly other resources such as images and css style sheets can be be specified as external dependencies that need to the downloaded.

The Solvent UI builder would handle the downloaded and proceed after all resources have been downloaded.

Below is an illustration of how to declare external dependencies:




UI Part Javascript interface

A part must implement the following interface to fully integrate into the Solvent UI Builder:




The document object

There is a document object associated with every design mode document. The active document is accessible via the method crudzilla.part.getActiveDoc(). In general a part developer isn't expected to do anything with the document object other than passing it as an argument, so as to establish context for various operations.




Integration attributes

The following element attributes are available for integration of UI Parts into the Solvent UI Builder.

  • data-solvent-call-ondrop: If this attribute is defined, then the processing of the dragged component would be delegated to the interface crudzilla.part.onDrop which is expected to have been implemented by the UI part. The value of this attribute is true.

  • data-solvent-part-component-id:This attribute is recommended for identifying components. You can choose other attributes but this is recommended because the UI tool may need to use it in the future. You'll specifiy this attribute on all dependencies and then reference those dependencies with an attribute selector that specifies this attribute.

If you are a developer who wants to build parts, join our google group to engage other developers.

Note we are going to make the parts store a marketplace where developers can sell their parts, so get on board!
